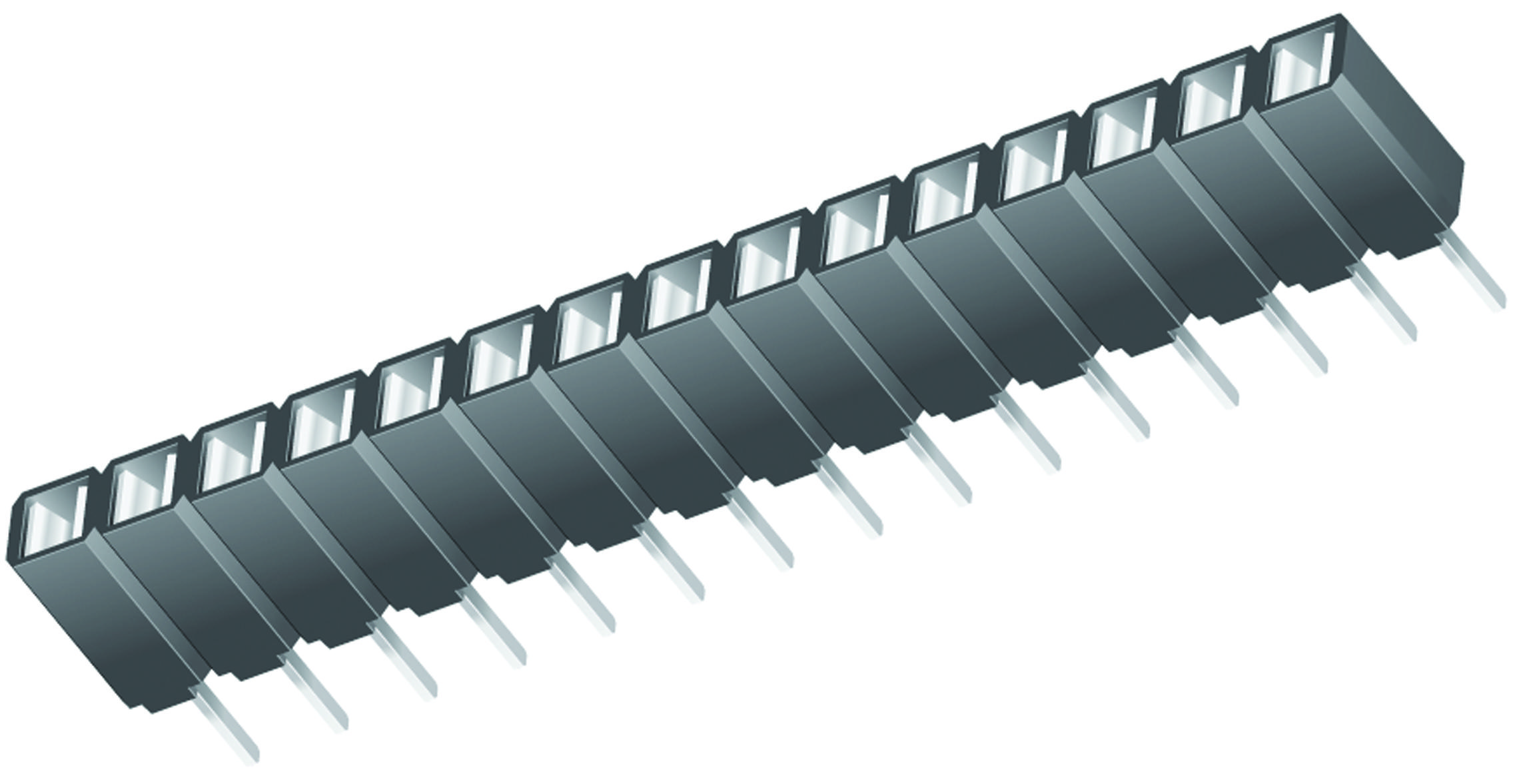

SAMTEC SSA116SG Socket Strip
The SSA116SG is a high-reliability socket strip featuring gold or tin over nickel plating, UL 94V-0 flammability rated PET polyester insulators, and a compact design suitable for IC connections. It offers excellent contact resistance, operating temperature range from -55°C to +125°C, and RoHS compliance. Designed with double side-wipe snap contacts, standoffs for easy cleaning, and optional low contact resistance plating, this socket strip supports high-temperature and high-reliability applications in various industries. It is ideal for PCB testing, circuit prototyping, and secure connections in demanding environments.
SAMTEC SSA116SG Socket Strip Specifications:
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin over Ni
- Flammability Rating: UL 94V-0
- Insulator Material: Black PET Polyester
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Heat Deflection Temp: 215°C at 264 psi
- Dielectric Withstanding Voltage: 1000 VRMS
- Contact Resistance: 10 mΩ
- Lead Size Range: 0.015" to 0.022" (0.38 mm to 0.56 mm)
- Insertion Depth: 0.050" (1.27 mm) to 0.130" (3.30 mm)
- Insertion Force: 10 oz (2.78 N), single contact
- Withdrawal Force: 5 oz (1.39 N), single contact
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes, wave soldering
- Certifications: UL Listed
- Features: Double side-wipe snap contacts, standoffs for board cleaning, optional low contact resistance plating
Buy the Samlec SSA116SG – Reliable Socket Strip for Industrial Applications
Order the Samlec SSA116SG socket strip today online to ensure precise and reliable connections for your PCB assemblies. With its gold or tin plating, UL 94V-0 rated insulators, and high operating temperature range, this socket strip guarantees enhanced durability and consistent performance even in harsh environments. Featuring easy board cleaning with standoffs, double side-wipe snap contacts, and RoHS compliance, it’s perfect for PCB testing, circuit prototyping, and industrial use. Make your purchase now to secure a high-quality, dependable connection solution for your electronic projects.
Buy Samlec SSA116SG now and experience unmatched reliability and performance in high-temperature and high-reliability applications.
Frequently Asked Questions
Where can I buy SAMTEC SSA116SG?
You can click on the BUY or RFQ button to purchase SSA116SG from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSA116SG?
You can download the SSA116SG datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSA116SG?
SAMTEC
