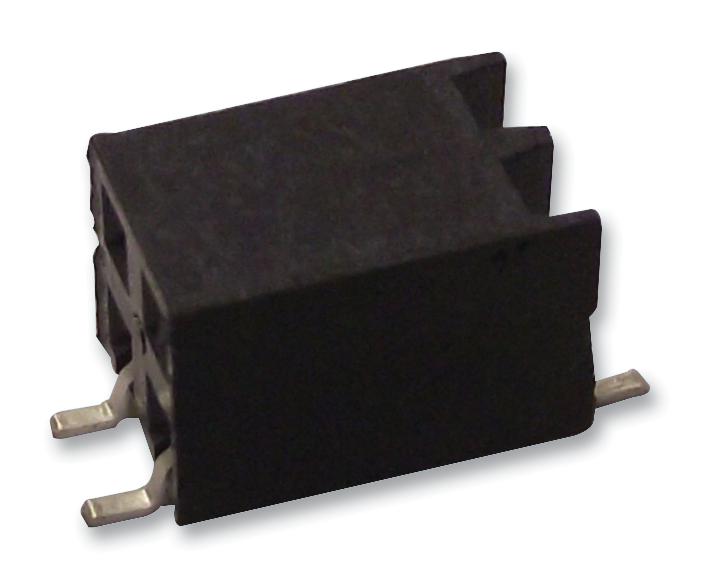

SAMTEC SSM102LDVBELC Surface-Mount Socket
This surface-mount socket features gold or tin over nickel plating, high current capacity of 5.2A per pin, and an operating temperature range from -85°C to +125°C. Constructed with phosphor bronze contact material and black liquid crystal polymer insulator, it supports multiple mated cycles for durable, reliable connections. The socket offers various options, including pass-through and miniatures, with pass-through capabilities from the top and flexible insertion depths. RoHS compliant, lead-free, and suitable for applications demanding robustness and high performance.
SAMTEC SSM102LDVBELC Surface-Mount Socket Specifications:
- Material: Black Liquid Crystal Polymer insulator
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temp Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm to 7.24 mm (pass-through from top), 5.56 mm plus minimum board thickness
- Insertion Force: 5 oz (1.39 N) average per contact
- Withdrawal Force: 2 oz (0.56 N) average per contact
- RoHS Compliant: Yes
- Processing: Lead-Free Soldérable: Yes
- Coplanarity: Less than 28 positions for DH, 15 mm max for less than 27 positions, 0.006" max, 0.008" max for others
- Dimensions: Support various options with tailored insert depths and pass-through capabilities
- Certifications: See www.samtec.com/quality for full recognitions
Buy the Samtec Series SSM: Surface-Mount Socket
Order the Samtec SSM102LDVBELC surface-mount socket online today to ensure your electronic assembly benefits from high current capacity, excellent durability, and RoHS compliance. Designed with high-quality phosphor bronze contacts and liquid crystal polymer insulators, this socket supports numerous mated cycles and withstands extreme operating temperatures from -85°C to +125°C. With precision engineering, it offers reliable insertion and withdrawal forces, making it ideal for demanding electronic projects requiring long-lasting performance and maximum reliability. Purchase now to secure fast delivery and technical support.
Get Samtec SSM102LDVBELC today—built for maximum durability and high current capacity in reliable electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSM102LDVBELC?
You can click on the BUY or RFQ button to purchase SSM102LDVBELC from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM102LDVBELC?
You can download the SSM102LDVBELC datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM102LDVBELC?
SAMTEC
