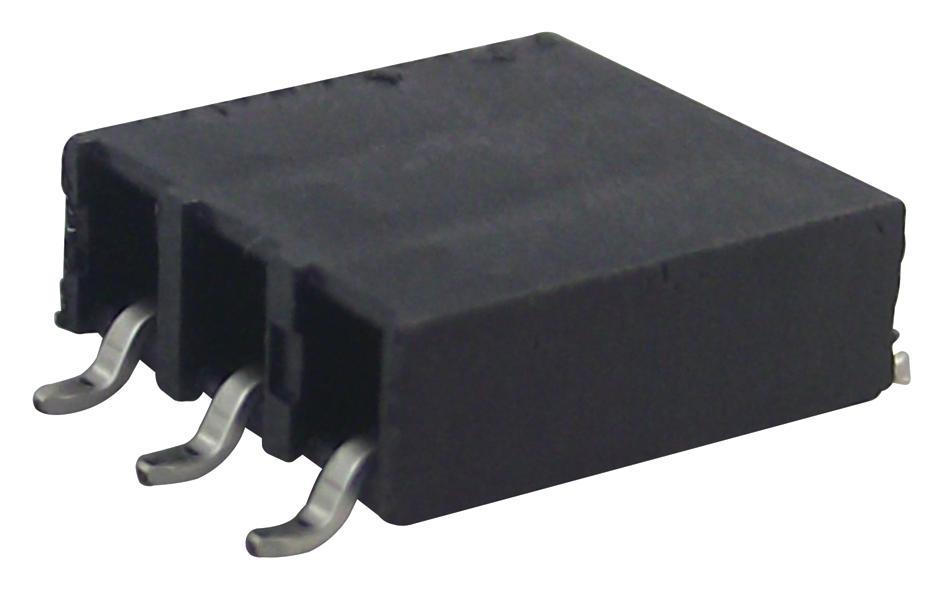

SAMTEC SSM103LSH Surface Mount Socket
The product is a surface mount socket designed for reliable electrical connections in industrial applications. Made with black liquid crystal polymer insulators and phosphor bronze contacts, it features gold or tin over nickel plating to enhance durability. It supports current ratings up to 5.2A per pin and 405 VAC / 572 VDC voltage ratings. Operable within -85°C to +125°C with gold and -85°C to +105°C with tin plating, the socket offers tight coplanarity, low insertion and withdrawal forces, and RoHS compliance. Suitable for high-mated cycle applications, it ensures long-lasting performance in demanding environments.
SAMTEC SSM103LSH Surface Mount Socket Specifications:
- Material: Black Liquid Crystal Polymer insulator
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni (50µ")
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temperature Range: -85°C to +125°C (Gold), -85°C to +105°C (Tin)
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm to 7.24 mm (SV/DV), 4.34 mm to 6.35 mm (SH/DH)
- Insertion Force: 5 oz (1.39 N) per contact
- Withdrawal Force: 2 oz (0.56 N) per contact
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Coplanarity: Less than 0.20 mm for more than 27 positions, less than 0.15 mm for 24 or fewer positions
- Design features include alignment pins and pass-through options for ease of PCB mounting
- Maximum number of positions: 2 to 40, with some lengths and styles non-standard or non-returnable
Buy the Samtec SSM103LSH – Reliable Surface Mount Socket for Industrial Applications
Purchase the reliable surface mount socket online today. Designed with high-quality materials like liquid crystal polymer insulator and phosphor bronze contacts, it offers excellent current capacity and temperature range. Its compact design supports up to 40 positions, with gold or tin plating for corrosion resistance. Perfect for industrial applications requiring secure and durable electrical connections, this socket features low insertion and withdrawal forces, ensuring easy installation and reusability. Invest in this high-performance, RoHS compliant component for your manufacturing or repair needs today.
Get Samtec SSM103LSH today—built for precision and long-lasting durability in high-cycle, demanding environments.
Frequently Asked Questions
Where can I buy SAMTEC SSM103LSH?
You can click on the BUY or RFQ button to purchase SSM103LSH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM103LSH?
You can download the SSM103LSH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM103LSH?
SAMTEC
