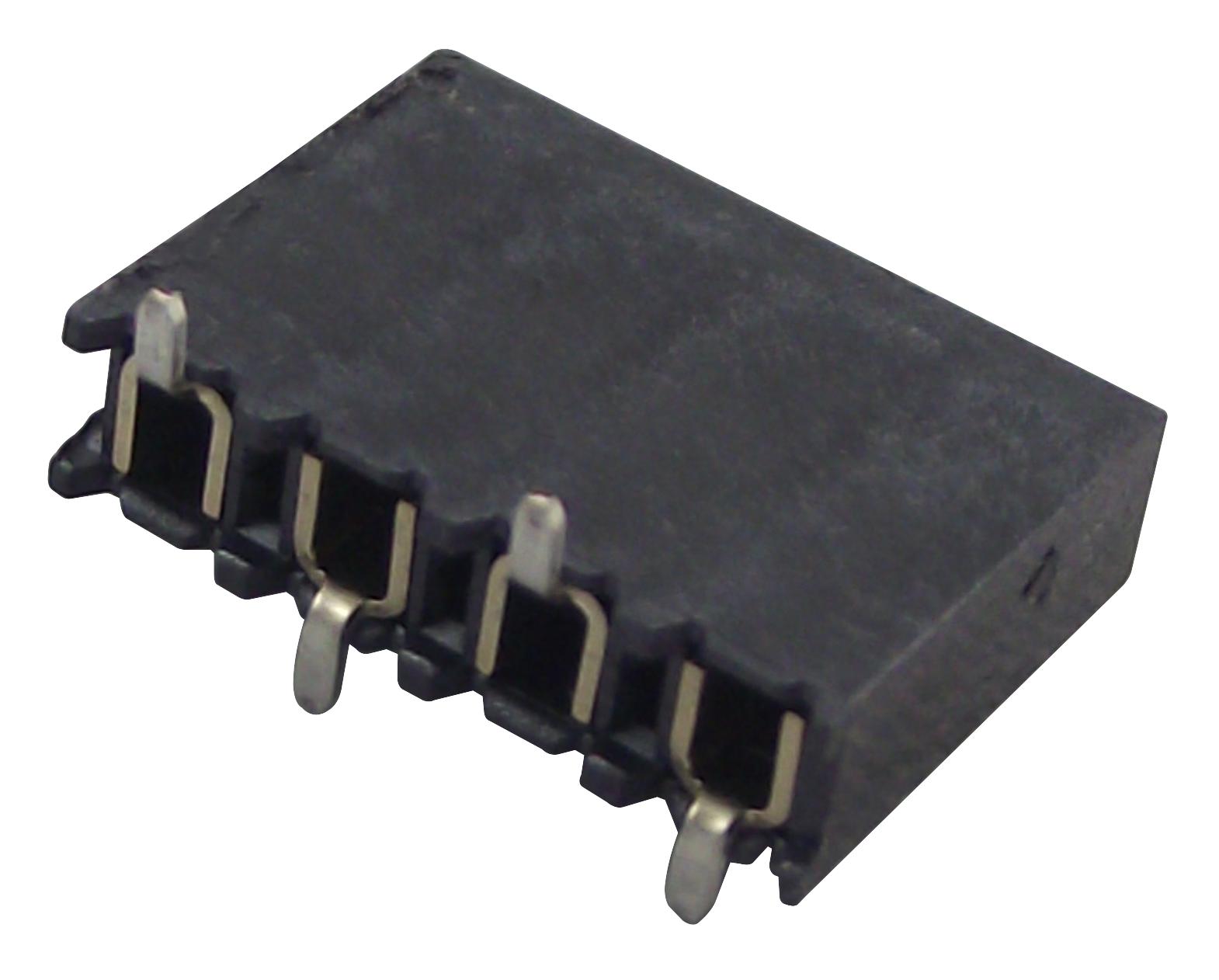

SAMTEC SSM104LSV Mixed Flow Gas Connector
The SSM104LSV is a high-reliability, mixed-flow gas electronic connector featuring a black liquid crystal polymer insulator and phosphor bronze or dielectric components. It supports current ratings of 5.2 A per pin, with voltage ratings up to 475 VAC for SV-DV or 450 VAC for SH-DH configurations. Operating temperature ranges from -55°C to +125°C with gold contact plating and -55°C to +105°C with tin. The connector offers easy installation with low insertion and withdrawal forces, and is compliant with lead-free soldering standards, making it ideal for demanding electronic and industrial applications.
SAMTEC SSM104LSV Mixed Flow Gas Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze, -DH&-SH options
- Current Rating: 5.2 A per pin
- Voltage Rating: 475 VAC for SV-DV, 450 VAC for SH-DH
- Operating Temperature Range: -55°C to +125°C with gold plating, -55°C to +105°C with tin plating
- Insertion Depth: 4.34 mm (0.171") to contact, 24 mm (0.285") pass-through from top
- Insertion Force: 5 oz (1.39 N) per contact, 125 grams (1.21 N) for normal force
- Withdrawal Force: 4 N (approx 0.89 lbf) average
- Coplanarity: 0.006" (0.15 mm) max for less than 28 positions, 0.008" (0.20 mm) max for more than 27 positions
- Lead-Free Solderable: Yes
- Compliance: RoHS and lead-free standards
Buy the Buy Samtec SSM104LSV Part Number SSM104LSV Online
Purchase the Samtec SSM104LSV mixed flow gas connector online today and enjoy fast shipping, competitive prices, and trusted quality. This connector combines high-reliability features, including a durable liquid crystal polymer insulator and corrosion-resistant contact materials, suitable for demanding industrial and electronic applications. With a current rating of 5.2 A per pin and voltage support up to 475 VAC, it ensures excellent performance within -55°C to +125°C operating temperature range. Ideal for efficient, secure, and maintenance-friendly connections.
Order your Samtec Series SSM104LSV connector today and ensure reliable, high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SSM104LSV?
You can click on the BUY or RFQ button to purchase SSM104LSV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM104LSV?
You can download the SSM104LSV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM104LSV?
SAMTEC
