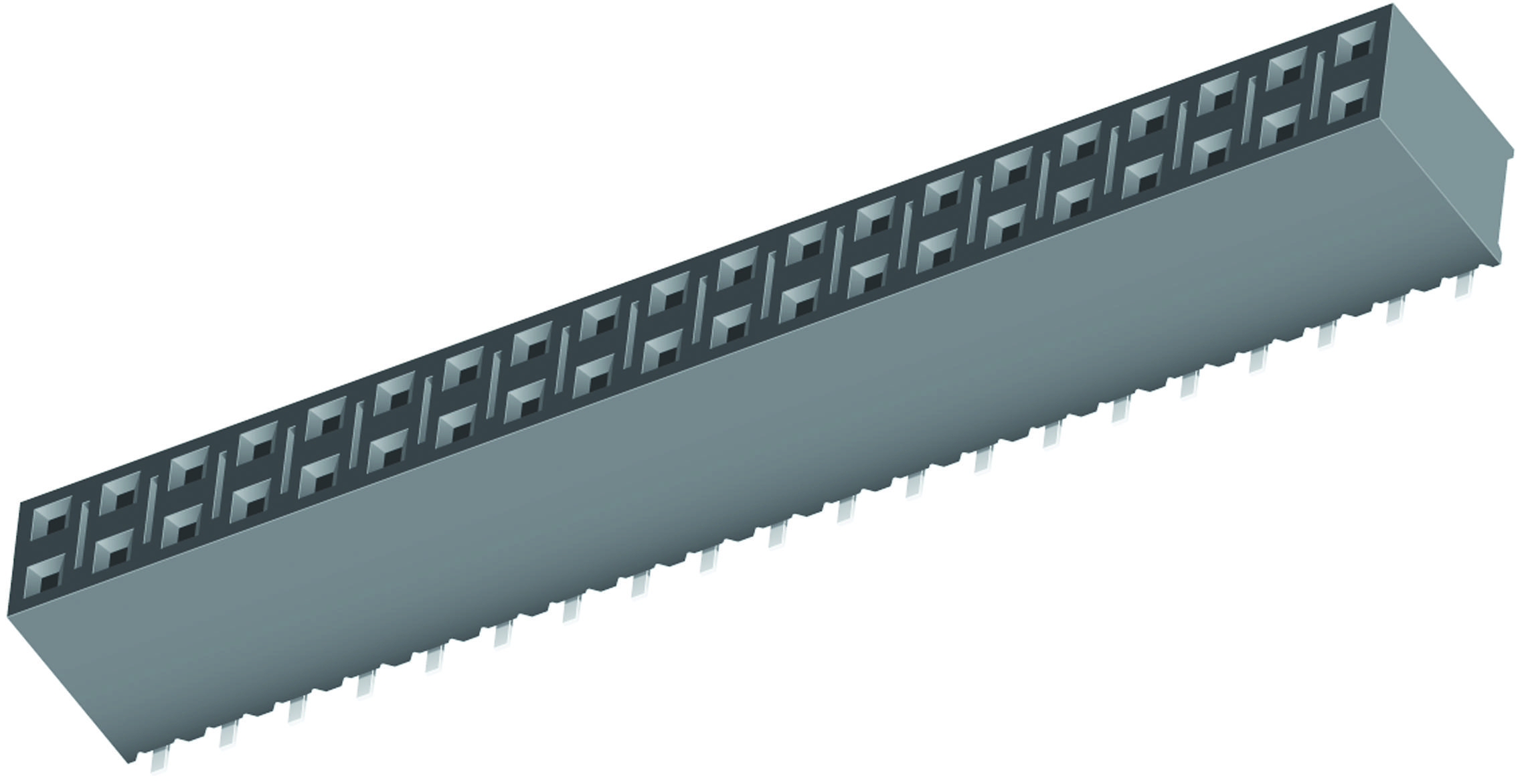

SAMTEC SSM105LDV Surface Mount Socket
The SSM105LDV is a high-quality, surface-mount socket designed for reliable electrical connections. Made from black liquid crystal polymer insulator material and phosphor bronze contacts, it features gold or tin plating over nickel for excellent corrosion resistance. With a current rating of 5.2A per pin and voltage capacity of 405 VAC / 572 VDC, this socket supports a temperature range of -85°C to +125°C with gold and -85°C to +105°C with tin plating. It ensures precise coplanarity, easy insertion, and low insertion and withdrawal forces for maximum durability and performance in complex electronic assemblies.
SAMTEC SSM105LDV Surface Mount Socket Specifications:
- Material: Liquid Crystal Polymer insulator
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2A per pin
- Voltage Capacity: 405 VAC / 572 VDC
- Temperature Range: -85°C to +125°C with gold, -85°C to +105°C with tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm to 7.24 mm
- Insertion Force: 5 oz (1.39 N) average per contact
- Withdrawal Force: 2 oz (0.56 N) average per contact
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Coplanarity: Less than 0.006" for less than 28 positions, 0.008" for more than 27 positions
- Operating Temp Range: -85°C to +125°C (gold), -85°C to +105°C (tin)
Buy the Buy Samtec SSM105LDV Part Number SSM105LDV Online
Purchase the Samtec SSM105LDV surface mount socket online today for reliable, high-performance electrical connections in your complex electronic projects. Featuring durable gold or tin plating over phosphor bronze contacts, it supports high current ratings of 5.2A per pin and voltages up to 572 VDC. Its temperature range from -85°C to +125°C ensures operational stability across diverse environments. Designed for easy insertion with minimal force and excellent coplanarity, this socket guarantees long-term durability and optimal performance in advanced circuit designs.
Order your Samtec Series SSM105LDV socket today and give your electronic assemblies the dependable connection quality they deserve.
Frequently Asked Questions
Where can I buy SAMTEC SSM105LDV?
You can click on the BUY or RFQ button to purchase SSM105LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM105LDV?
You can download the SSM105LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM105LDV?
SAMTEC
