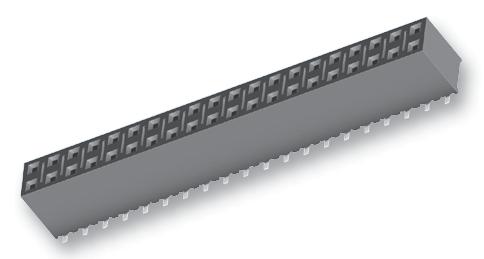

Samtec SSM105LMDV Socket Connector
The product is a high-quality socket connector designed for precise PCB mounting and reliable electrical connection. Made from black liquid crystal polymer insulator material and phosphor bronze contact material, it supports high current ratings of up to 5.2A per pin. The connector operates within a temperature range of -55°C to +125°C, featuring small form factors with pass-through options for 4.34 mm or 6.35 mm depth. Suitable for multiple positions, it ensures coplanarity and easy soldering, ideal for professional electronic and industrial applications.
Samtec SSM105LMDV Socket Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Pin Count: Up to 29 positions
- Current Rating: 5.2A per pin
- Voltage Rating: 572V
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 4.34 mm to 6.35 mm
- Coplanarity (less than 28 positions): 0.15 mm
- Minimum board spacing: 0.13 inches (3.30 mm)
- Dimensions: Length varies with options, typical pass-through from top varies between 4.34 mm and 6.35 mm
Buy the Samtec Series SSM PCB Socket: SSM105LMDV
Purchase the Samtec SSM105LMDV socket connector online today and ensure durable, precise, and reliable PCB connections. Made with high-quality materials like liquid crystal polymer insulator and phosphor bronze contact, it supports high current and temperature capabilities, providing optimal performance in demanding electronic applications. Its compact design, multiple pass-through options, and excellent coplanarity make it suitable for various industrial and professional electronics projects. Secure your supply and boost your production efficiency by ordering now for fast delivery and dedicated support.
Buy Samtec SSM105LMDV socket connector now and experience unmatched reliability and performance for your electronic assembly needs.
