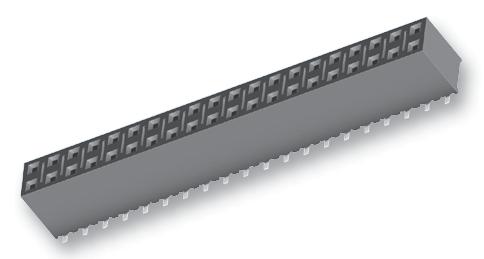

Samtec SSM105LMDVLC PCB Connector
The SSM series presents high-performance, single-row, horizontal pin connectors designed for versatile PCB applications. Crafted from black liquid crystal polymer insulator material and phosphor bronze contact material with gold or tin plating, these connectors support current ratings up to 5.2 A per pin and voltage ratings up to 572 V. Operating across -55°C to +125°C, they feature various heights and lengths to accommodate different design requirements. Compatibility with multiple positions, ensuring precise alignment, and low coplanarity are key advantages, making them ideal for complex electronic assemblies in industrial and automation sectors.
Samtec SSM105LMDVLC PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin (optional)
- Current Rating: 5.2 A per pin
- Voltage Rating: 572 V
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 4.34 mm to 7.24 mm
- Coplanarity: Less than 0.15 mm for up to 28 positions
- Number of Positions: 29 maximum
- Seal: Optional (see full specifications)
- Compatibility: Single row, compact, horizontally mounted
- Certifications: As per Samtec standards
- Dimensions: Length varies with option, typical around 6.08–8.13 mm
Buy the Buy Samtec SSM Series 105LMDVLC Part Number SSM105LMDVLC Online
Enhance your electronic assemblies with the high-quality Samtec PCB Connector, featuring optimal current capacity, durable plating, and a temperature range of -55°C to +125°C. Designed for versatility, it supports multiple positions with precise coplanarity, ensuring reliable connections in industrial, automation, and electronic device applications. Easy to install with various lengths and heights, this connector provides excellent mechanical stability and electrical performance, making it a vital component for engineers seeking dependable interconnect solutions for complex PCBs. Purchase online today for quick delivery and excellent customer support.
Order your Samtec Series SSM105LMDVLC connector today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy Samtec SSM105LMDVLC?
You can click on the BUY or RFQ button to purchase SSM105LMDVLC from an authorized Samtec distributor.
How do I troubleshoot issues or seek technical support for part SSM105LMDVLC?
You can download the SSM105LMDVLC datasheet or visit the Samtec website for support.
Who is the manufacturer of SSM105LMDVLC?
Samtec
