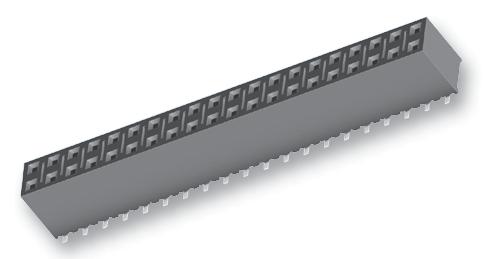

SAMTEC SSM105LMDVLCP Socket Mount Connector
The SSM-120-S-DV series is a high-quality socket mount connector designed for reliable PCB integration. Made with black liquid crystal polymer insulator material and phosphor bronze contacts, it supports current ratings up to 5.2A per pin and operates within a temperature range of -55°C to +125°C with gold plating or -55°C to +105°C with tin plating. The connector offers insertion depths from 0.171 to 0.285 inches, with coplanarity less than 0.006 inches for up to 28 positions, ensuring precise alignment and stable connections in various electronic applications.
SAMTEC SSM105LMDVLCP Socket Mount Connector Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 5.2A per pin
- Operating Temp Range: -55°C to +125°C with gold plating, -55°C to +105°C with tin plating
- Insertion Depth: 0.171 to 0.285 inches
- Coplanarity: Less than 0.006 inches for up to 28 positions
- Pin Count: up to 29 positions
- Board Spacing: 2.54 mm (.100 inch)
- Plating: Gold or Tin
- Compatible with: Modular PCB applications and high-density interfaces
Buy the Buy Samtec SSM-120-S-DV Part Number SSM105LMDVLCP Online
Purchase the Samtec Socket Mount Connector online for dependable performance in your electronic and industrial applications. Engineered with high-quality materials like phosphor bronze contacts and liquid crystal polymer insulators, this connector provides excellent current capacity and temperature stability. Its precise insertion depth and low coplanarity ensure optimal PCB fit and electrical contact, making it ideal for complex electronic assemblies. Convenient online ordering guarantees quick delivery, helping you meet project deadlines efficiently and confidently.
Order your Samtec Series SSM-120-S-DV connector today and ensure reliable, high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SSM105LMDVLCP?
You can click on the BUY or RFQ button to purchase SSM105LMDVLCP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM105LMDVLCP?
You can download the SSM105LMDVLCP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM105LMDVLCP?
SAMTEC
