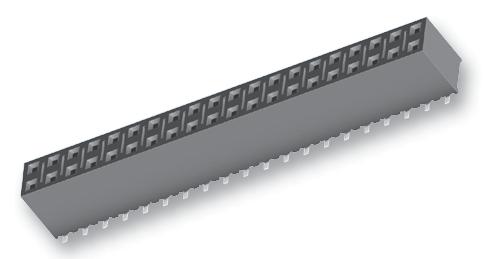

Samtec SSM105LMDVP Socket Mount Connector
The SSM-115-L-SH is a high-quality socket mount connector designed for precise PCB connections. Constructed with a black liquid crystal polymer insulator and phosphor bronze contact material, it features gold or tin plating options. The connector supports a current rating of 5.2A per pin, operating within -55°C to +125°C, and pass-through insertion depths between 4.34 mm and 7.24 mm. It is suitable for applications requiring high reliability and coplanarity, with various size and pin count options for flexible integration.
Samtec SSM105LMDVP Socket Mount Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold and Tin options
- Current Rating: 5.2A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 4.34 mm to 7.24 mm
- Maximum Number of Positions: 50
- Coplanarity (less than 28 positions): 0.006 inch (0.15 mm)
- Coplanarity (more than 27 positions): 0.008 inch (0.20 mm)
- Pass-through design for easy PCB mounting
- Compatible with multiple sizes and pin configurations
- Designed for high-reliability electronic device connections
- Supports both gold and tin plating for corrosion resistance
- Suitable for industrial, automation, and electronic applications
- Meets recognized quality standards, customizable options available
Buy the Buy Samtec SSM-115-L-SH Part Number SSM-115-L-SH Online
Discover the Samtec Socket Mount Connector, designed for robust electronic connections with high current capacity and excellent temperature tolerance. Crafted with durable liquid crystal polymer insulators and phosphor bronze contacts, it offers flexible pin configurations and pass-through depth options. Suitable for industrial and automation applications, this connector supports high-reliability operations with coplanarity standards for precise PCB integration. Purchase online today to ensure your projects meet quality and performance expectations with a trusted, industry-leading component.
Get Samtec SSM-115-L-SH today—built for precision and long-lasting durability in PCB mounting applications.
Frequently Asked Questions
Where can I buy Samtec SSM105LMDVP?
You can click on the BUY or RFQ button to purchase SSM105LMDVP from an authorized Samtec distributor.
How do I troubleshoot issues or seek technical support for part SSM105LMDVP?
You can download the SSM105LMDVP datasheet or visit the Samtec website for support.
Who is the manufacturer of SSM105LMDVP?
Samtec
