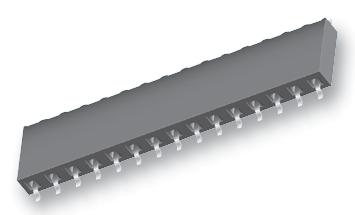

Samtec SSM105SMDH Socket Mount Connector
The SSM105SMDH is a versatile, high-quality socket mount connector designed for a range of electronic applications. It features a black liquid crystal polymer insulator and phosphor bronze contact material, ensuring durability and reliable connections. With a current rating of 5.2 amps per pin and an operating temperature range of -55°C to +125°C depending on gold or tin plating, this connector offers excellent thermal stability. Its compact design allows for easy insertion depth and alignment, suitable for PCB mounting in various electronic devices and industrial equipment.
Samtec SSM105SMDH Socket Mount Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Current Rating: 5.2 Amps per pin
- Operating Temp Range: -55°C to +125°C with Gold plating, -55°C to +105°C with Tin plating
- Insertion Depth: 4.34 mm to 7.24 mm
- Pin Count: Up to 50 positions
- Coplanarity: Less than 0.15 mm for up to 27 positions, less than 0.20 mm for more than 27 positions
- Voltage Rating: 572V
- Pass-through: From top to bottom, board thickness minimum from the bottom
- Compliance: RoHS compliant, suitable for reflow soldering
- Dimensions: Length varies, suitable for PCB mounting; pass-through design for electrical connections
Buy the Samtec Series SSM Sockets: SSM105SMDH
Enhance your electronic assemblies with the high-quality Socket Mount Connector, featuring a liquid crystal polymer insulator and phosphor bronze contacts for reliable performance. Designed with a compact footprint, it ensures easy installation with precise insertion depths and excellent temperature stability for various PCB applications. Ideal for industrial equipment, control systems, and automation solutions, this connector supports high current ratings and pass-through configurations. Order your Samtec Series SSM Sockets SSM105SMDH today and experience dependable, durable connections for your projects.
Order your Samtec Series SSM Sockets SSM105SMDH today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Samtec SSM105SMDH?
You can click on the BUY or RFQ button to purchase SSM105SMDH from an authorized Samtec distributor.
How do I troubleshoot issues or seek technical support for part SSM105SMDH?
You can download the SSM105SMDH datasheet or visit the Samtec website for support.
Who is the manufacturer of SSM105SMDH?
Samtec
