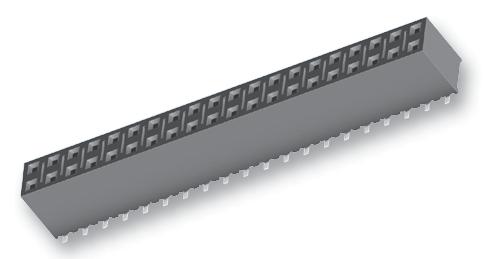

Samtec SSM107LDVK Pin Header Connector
The SSM107LDVK is a high-quality connector designed for PCB applications, featuring a liquid crystal polymer insulator and phosphor bronze contact material. It supports multiple pin configurations with plating options including gold and tin, providing reliable electrical connections with a current rating of up to 5.2 A per pin. Suitable for operating temperatures between -55°C and +125°C, this connector ensures durability, high pin density, and efficient pass-through connectivity in compact electronic systems. It is ideal for demanding industrial and electronic manufacturing environments that require robust and precise interconnections.
Samtec SSM107LDVK Pin Header Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating Options: Gold or Tin
- Current Rating: 5.2 A per pin
- Voltage Rating: 572 V
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 4.34 mm (.171") to 7.24 mm (.285")
- Pin Count: Up to 29 positions
- Coplanarity: Less than 0.15 mm (.006") for up to 27 positions, 0.20 mm (.008") for more than 27 positions
- Normal Force: 1.21 N (123.5 grams) average
- Solderability: Free solderable
- Orientation: Polarized position
- Durability: Designed for multiple insertions and operational reliability
Buy the Buy Samtec SSM107LDVK Part Number SSM107LDVK Online
Secure your electronic assembly with the high-performance Pin Header Connector, SSM107LDVK, featuring robust liquid crystal polymer insulation and durable bronze contacts. Designed for diverse PCB configurations, it supports high-current applications up to 5.2 A per pin and an operating temperature range from -55°C to +125°C. Easy to solder, with polarized positions for correct orientation, this connector offers reliable connections for industrial, automation, and electronic manufacturing systems. Purchase online now for quality and efficiency in your projects.
Get Samtec SSM107LDVK today—built for precision and long-lasting durability in high-density electronic connectors.
Frequently Asked Questions
Where can I buy Samtec SSM107LDVK?
You can click on the BUY or RFQ button to purchase SSM107LDVK from an authorized Samtec distributor.
How do I troubleshoot issues or seek technical support for part SSM107LDVK?
You can download the SSM107LDVK datasheet or visit the Samtec website for support.
Who is the manufacturer of SSM107LDVK?
Samtec
