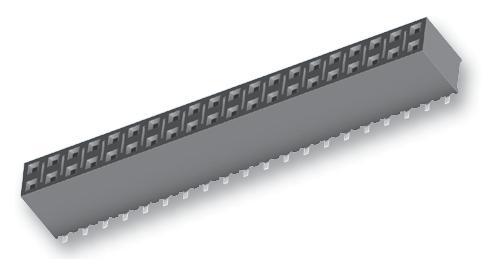

Samtec SSM107SDVLCP Socket Connector
The SSM series is a high-performance socket connector designed for versatile electronic applications, featuring a black liquid crystal polymer insulator and phosphor bronze contacts with nickel plating. Suitable for PCB mounting, it supports 2 to 40 positions, with operating temperatures from -55°C to +125°C. Capable of pass-through mounting, it offers a current rating of 5.2A per pin, and accommodates a variety of sizes and configurations. The connector ensures reliable electrical contact and coplanarity, tailored for demanding manufacturing and testing environments. Compatible with polarized and surface-mounted positions for flexible PCB integration.
Samtec SSM107SDVLCP Socket Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Nickel
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 5.2A per pin
- Voltage Rating: 572V
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 4.34 mm (0.171") to 4.34 mm (0.171") for certain sizes
- Number of Positions: 2 to 40
- Coplanarity: Less than 0.15 mm (0.006") for up to 28 positions, 0.20 mm (0.008") for more than 27 positions
- Pass-through from top: 7.24 mm (0.285")
- Board thickness minimum: 5.56 mm (0.219")
- Temperature Rating: -55°C to +125°C
- Style: Single Row Horizontal Pin
- Application: PCB mounting, electronic testing, manufacturing
- Standards: Recognized by industry and compliant with quality certifications
Buy the Samtec Series SSM: Socket Connector for PCB Mounting
Purchase the Samtec socket connector online today for reliable PCB connections, flexible configurations, and robust performance in demanding electronic applications. Designed for versatility with support for 2 to 40 positions, it provides excellent electrical contact, high current capacity, and temperature resilience from -55°C to +125°C. Ideal for manufacturing, testing, or high-density electronic projects, this connector ensures secure mounting, coplanarity, and consistent electrical performance. Order now for fast delivery and quality assurance directly from authorized distributors.
Get Samtec SSM socket connector today—built for precision, versatile configurations, and long-lasting durability.
Frequently Asked Questions
Where can I buy Samtec SSM107SDVLCP?
You can click on the BUY or RFQ button to purchase SSM107SDVLCP from an authorized Samtec distributor.
How do I troubleshoot issues or seek technical support for part SSM107SDVLCP?
You can download the SSM107SDVLCP datasheet or visit the Samtec website for support.
Who is the manufacturer of SSM107SDVLCP?
Samtec
