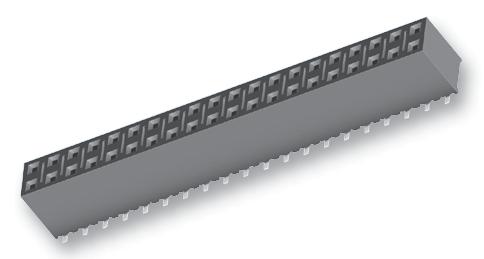

Samtec SSM108LDVP Dual-Row Socket Connector
The SSM108LDVP is a high-performance, dual-row socket connector designed for reliable PCB connections. Made with liquid crystal polymer insulator and phosphor bronze contacts, it supports operating temperatures from -55°C to +125°C with gold plating for enhanced conductivity. This versatile connector accommodates 2 to 40 positions, features a maximum insertion depth of approximately 4.34 mm (0.171 inches) to 7.24 mm (0.285 inches), and complies with industry standards for quality and durability. It is ideal for high-reliability electronic assemblies requiring secure and conductive connections.
Samtec SSM108LDVP Dual-Row Socket Connector Specifications:
- Insulator Material: Liquid Crystal Polymer, Black
- Contact Material: Phosphor Bronze, Gold Plated (0.25 μm) Nickel
- Number of Positions: 2 to 40
- Current Rating: 5.2 A per pin
- Voltage Rating: 572 V
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 4.34 mm (0.171 in) to 7.24 mm (0.285 in)
- Coplanarity: Less than 0.15 mm (0.006 in) for up to 28 positions, less than 0.20 mm (0.008 in) for more than 27 positions
- Width: Up to 29 positions, 6.08 mm (0.239 in)
- Length: Varies up to 8.13 mm (0.320 in)
- Solderability: Yes, compliant
- Certification: Recognized by industry standards
- Design allows pass-through from top to bottom with precise alignment pins
- Material in contact areas designed for durability and high contact force
- Compatible with various PCB thicknesses and configurations, suitable for high-density electronic applications
Buy the Samtec Series SSM PCB Socket Connector: SSM108LDVP
Discover the versatile SSM108LDVP dual-row socket connector, ideal for reliable PCB connections in high-density assemblies. Made with durable phosphor bronze contacts and liquid crystal polymer insulation, it features gold plating to ensure low contact resistance and high durability. Supporting up to 40 positions and operating in broad temperature ranges from -55°C to +125°C, this connector guarantees secure, stable connections for demanding electronic applications. Easy to install, compliant with industry standards, and suitable for various PCB thicknesses, it is the perfect choice for sophisticated electronic designs.
Buy Samtec SSM108LDVP now and experience unmatched reliability and performance with high current capacity and secure PCB connections.
Frequently Asked Questions
Where can I buy Samtec SSM108LDVP?
You can click on the BUY or RFQ button to purchase SSM108LDVP from an authorized Samtec distributor.
How do I troubleshoot issues or seek technical support for part SSM108LDVP?
You can download the SSM108LDVP datasheet or visit the Samtec website for support.
Who is the manufacturer of SSM108LDVP?
Samtec
