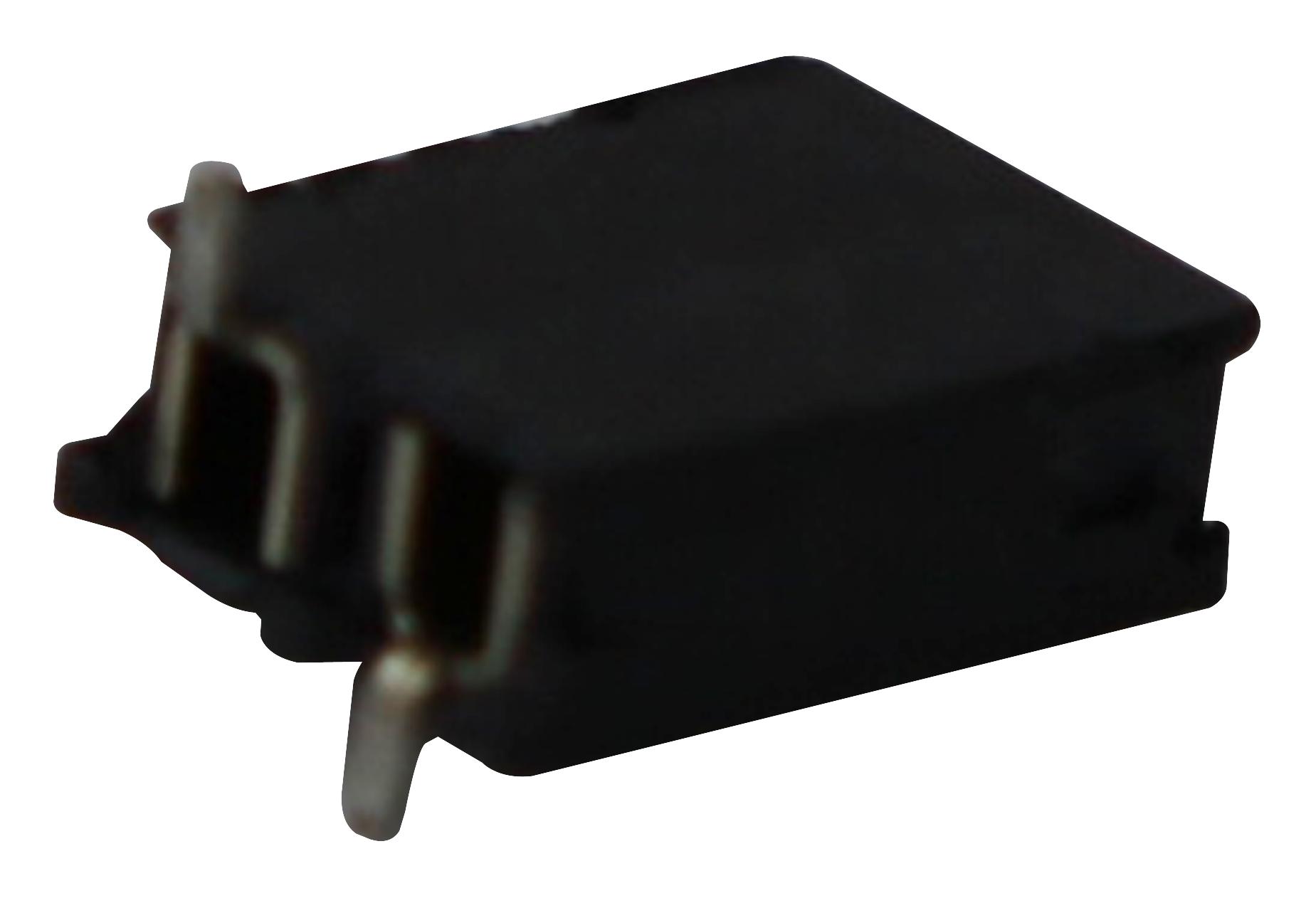

SAMTEC SSM108LSV High-Density Surface-Mount Socket
The SSM108LSV is a high-quality surface-mount socket designed for reliable electrical connections in electronic assemblies. Featuring a black liquid crystal polymer insulator and phosphor bronze contacts plated with gold or tin over nickel, it supports current ratings of 5.2A per pin and voltage ratings up to 405 VAC or 572 VDC. Its operating temperature ranges from -85°C to +125°C with gold plating and -85°C to +105°C with tin. The socket accommodates insert depths from 4.34 mm to 7.24 mm, with low insertion and withdrawal forces for maximum durability, making it ideal for high-cycle applications.
SAMTEC SSM108LSV High-Density Surface-Mount Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" (1.27 μm) Ni
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temperature Range: -85°C to +125°C (Gold), -85°C to +105°C (Tin)
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm to 7.24 mm
- Insertion Force: 5 oz (1.39 N) per contact
- Withdrawal Force: 2 oz (0.56 N) per contact
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Coplanarity: Less than 0.20 mm for more than 27 positions
- Dimensions: Suitable for surface mounting with detailed PCB layouts available from manufacturer
Buy the Samtec Series High-Density Socket: SSM108LSV
Purchase the Samtec Series SSM108LSV high-density surface-mount socket online today. Designed for durability and high-cycle performance, it features gold or tin plating for excellent conductivity and corrosion resistance. Supports current of 5.2A per pin and voltage up to 405 VAC, suitable for demanding electronic assemblies. Its low insertion and withdrawal forces extend the lifespan of your connectors, ensuring reliable performance in high-reliability applications. Easy to install, RoHS compliant, and compatible with various PCB layouts, making it an excellent choice for engineers and technicians.
Order your Samtec Series SSM108LSV socket today and ensure reliable, high-cycle connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SSM108LSV?
You can click on the BUY or RFQ button to purchase SSM108LSV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM108LSV?
You can download the SSM108LSV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM108LSV?
SAMTEC
