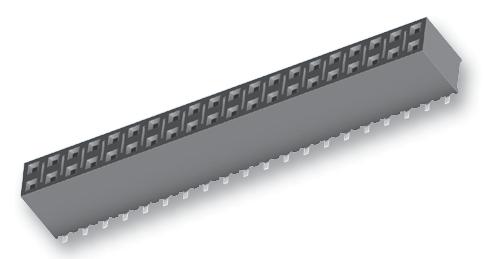

Samtec SSM109SDV014K PCB Socket Connector
The VIOUNT socket offers reliable electrical connections with a black liquid crystal polymer insulator and phosphor bronze contacts plated with gold or tin for enhanced durability. Designed for versatile PCB applications, it supports operating temperatures from -55°C to +125°C with gold plating and -55°C to +105°C with tin. With a pin count ranging from 2 to 40 and an insertion depth from 4.34 mm to 7.24 mm, this socket ensures high performance and robust connectivity. Ideal for demanding electronic systems needing precise and durable connectivity solutions.
Samtec SSM109SDV014K PCB Socket Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating Options: Au (Gold) or Sn (Tin)
- Current Rating: 5.2 A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 4.34 mm to 7.24 mm
- Number of Pins: 2 to 40
- Lead-Free Solderable: Yes
- Coplanarity: 0.006 inch max
- Positions: 2 to 40
- Compatible with PCB thickness: 5.56 mm plus board thickness minimum
- Durability: Designed for extended use with high insertion/extraction cycles
- Compliance: RoHS compliant
Buy the Samtec Series VIOUNT PCB Socket: SSM109SDV014K
Purchase the Samtec PCB socket online today to ensure reliable and durable electrical connections for your electronic projects. With wide temperature support, gold or tin plating, and versatile pin configurations, this socket is ideal for high-performance systems. Its robust design ensures longevity and precise contact stability, making it suitable for demanding industrial or consumer electronic applications. Buy now to benefit from quick delivery, competitive pricing, and trusted quality for your manufacturing or repair needs.
Get Samtec SSM109SDV014K today—built for precision and long-lasting durability in electronic connection applications.
Frequently Asked Questions
Where can I buy Samtec SSM109SDV014K?
You can click on the BUY or RFQ button to purchase SSM109SDV014K from an authorized Samtec distributor.
How do I troubleshoot issues or seek technical support for part SSM109SDV014K?
You can download the SSM109SDV014K datasheet or visit the Samtec website for support.
Who is the manufacturer of SSM109SDV014K?
Samtec
