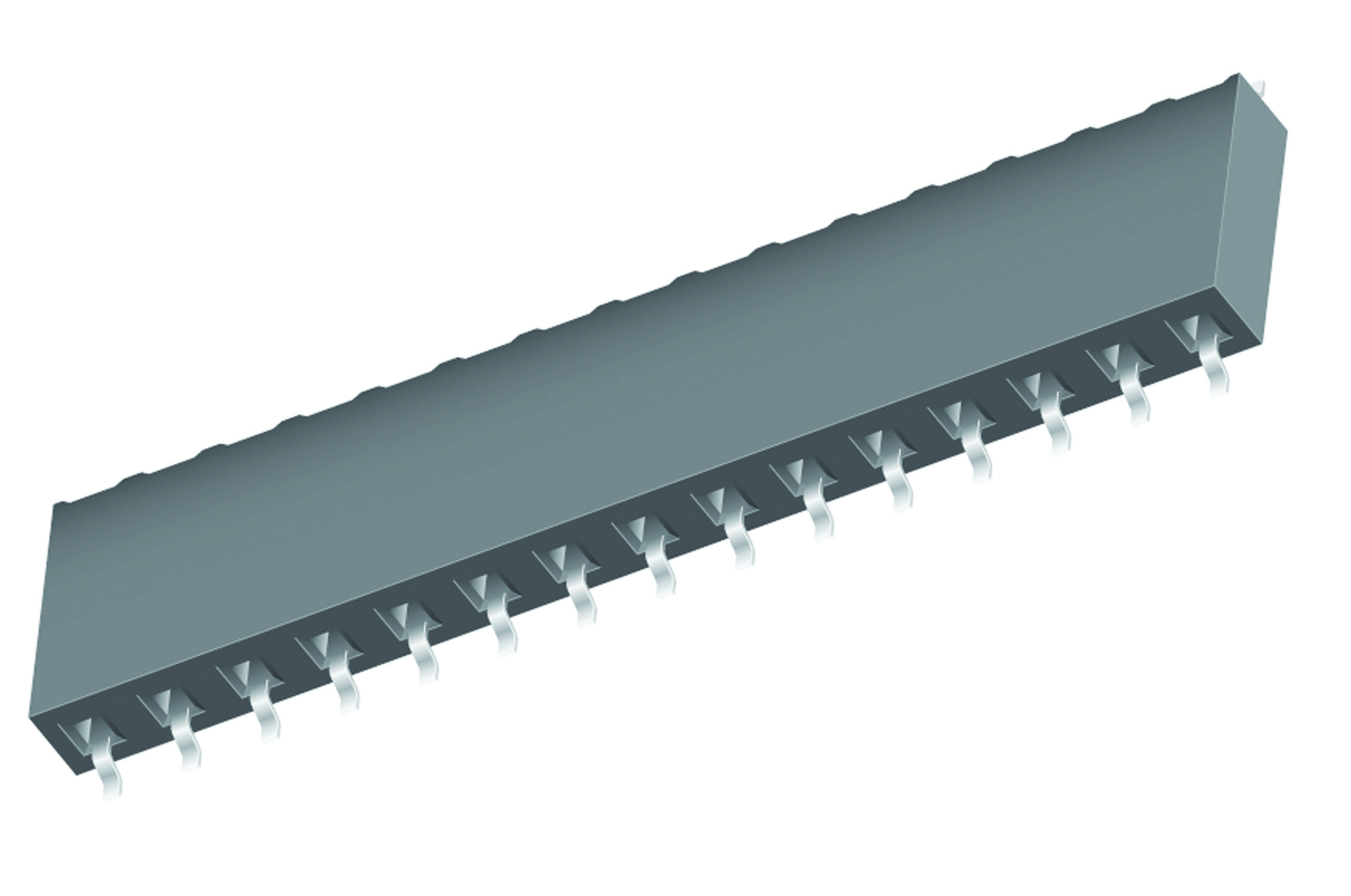

SAMTEC SSM110LSH Connector
The SSM-115-L-SH is an extended life product featuring a black liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating over 50 micrometers of nickel. Designed for high reliability, it supports a current rating of 5.2 A per pin and operates within a temperature range of -55°C to +125°C with gold plating, and -55°C to +105°C with tin. The connector offers low contact resistance, stable insertion and withdrawal forces, and compliance with industry standards, making it ideal for high-performance, durable applications in industrial and electronic systems.
SAMTEC SSM110LSH Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" (1,27 μm) Ni
- Current Rating: 5.2 A per pin
- Voltage Rating: 475 VAC (-SV/-DV mated)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: approximately 4.34 mm (0.171") to 6.35 mm (0.250") depending on model
- Insertion Force: 5 oz (1.39 N) average
- Withdrawal Force: 2.07 oz (0.56 N) average
- Copl surrender: Less than 0.20 mm (0.008") for more than 27 positions
- Compatibility: Supports multiple pin counts, designed for PCB mounting
- Certifications: Industry standards compliant
- Dimensions: Length 2.54 mm (0.100") per position, overall sizes vary with configuration
- Additional features include alignment pins, pass-through options, and optional plating choices.
Buy the Samtec SSM110LSH – Reliable Connectors for Industrial Applications
Purchase the Samtec SSM110LSH connector online now—designed for durability and high reliability with gold or tin plating over phosphor bronze contacts. This high-performance connector supports 5.2 A per pin current rating, features a broad temperature range from -55°C to +125°C, and offers low contact resistance and stable insertion and withdrawal forces. Its compact size and industry-standard compliance make it ideal for PCB mounting in industrial automation, electronics, and high-density signal connections. Buy now for fast delivery and secure online shopping!
Get Samtec SSM110LSH today—built for precision and long-lasting durability in high-demand industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC SSM110LSH?
You can click on the BUY or RFQ button to purchase SSM110LSH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM110LSH?
You can download the SSM110LSH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM110LSH?
SAMTEC
