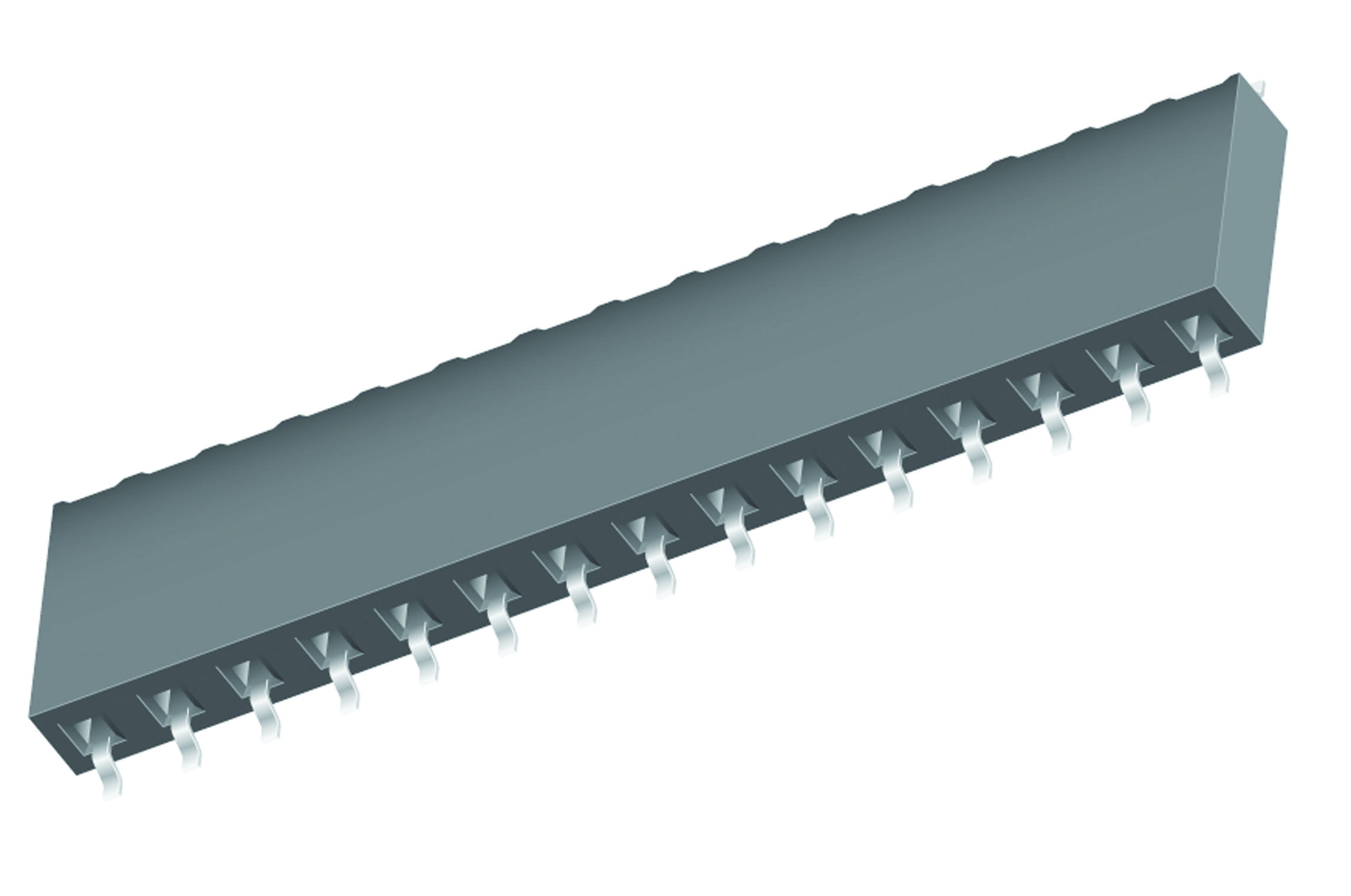

SAMTEC SSM112LSH High-Density Surface Mount Socket
The connector is a surface mount socket designed for maximum mated cycles, with precise coplanarity, RoHS compliance, and lead-free solderability. Made from black liquid crystal polymer with phosphor bronze contacts plated with gold or tin over Ni, it supports operating temperatures from -85°C to +125°C. It features a contact resistance of 10 mΩ, insertion depth from 4.34 mm, and a current rating of 5.2 A per pin. Suitable for high-density applications, it offers reliable performance and durability in various electronic systems.
SAMTEC SSM112LSH High-Density Surface Mount Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2 A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temp Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm (0.171") to 7.24 mm (0.285") or pass-through from top
- Withdrawal Force: 2 oz (0.56 N) average
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Coplanarity: Less than 0.20 mm (.008") for more than 27 positions
- Dimensions and hole sizes vary with model and number of positions
- Suitable for multiple mounting styles including surface mount and pass-through options
Buy the Samtec Series Socket: SSM112LSH
Purchase the Samtec SSM112LSH socket online today and enjoy reliable, durable connections designed for high-performance electronic applications. With excellent coplanarity, RoHS compliance, and support for high mated cycles, this socket ensures your projects meet demanding quality standards. It features gold or tin plating over nickel, supporting operating temperatures from -85°C to +125°C, with a current rating of 5.2 A per pin. Ideal for compact systems requiring robust and long-lasting connections, this product offers ease of installation and certified environmental compliance.
Buy Samtec SSM112LSH now and experience unmatched reliability and performance in high-density electronic connections.
