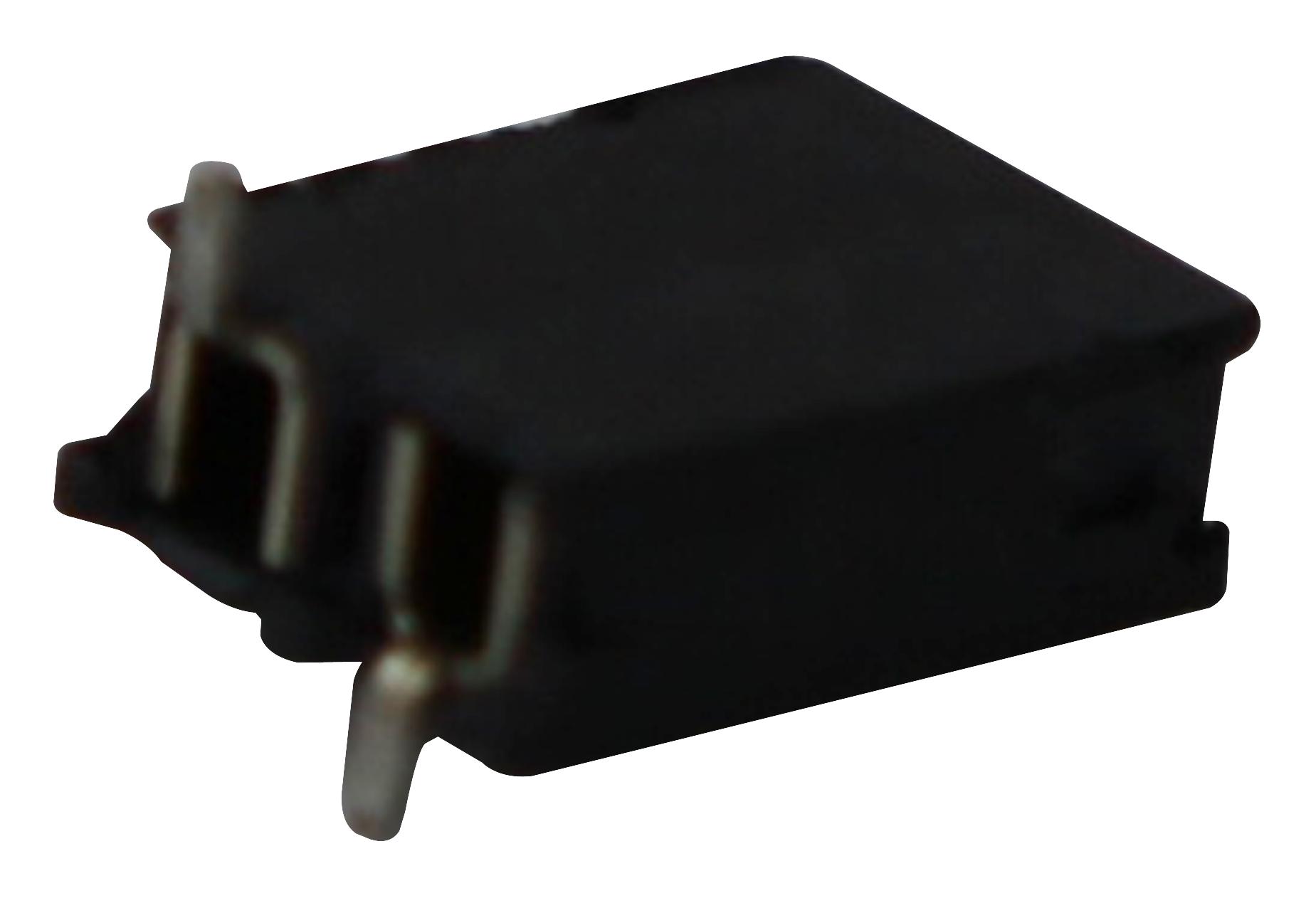

SAMTEC SSM112LSV PCB Socket Connector
The socket connector features a black liquid crystal polymer insulator, phosphor bronze contacts plated with gold or tin over nickel, and supports a current rating of 5.2A per pin. Designed for PCB applications, it operates from -85°C to +125°C with gold and -85°C to +105°C with tin plating. It has an insertion depth of approximately 4.34 mm to 7.24 mm and offers RoHS compliance and lead-free solderability. Suitable for maximum mating cycles, it features coplanarity variations for standard and larger pin counts.
SAMTEC SSM112LSV PCB Socket Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" (1.27 μm) Ni
- Current Rating: 5.2A per pin
- Voltage: 405 VAC / 572 VDC
- Operating Temperature Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm to 7.24 mm
- Insertion Force: 5 oz (1.39 N) average per contact
- Withdrawal Force: 2 oz (0.56 N) average per contact
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Coplanarity: Less than 0.20 mm for more than 27 positions
- Supported Mated Cycles: Maximum for extended lifespan
Buy the Samtec SSM112LSV – Reliable PCB Socket for Industrial Applications
Purchase the high-performance PCB socket connector online today. Designed for reliability, durability, and consistent electrical contact, it features liquid crystal polymer insulators, phosphor bronze contacts with gold or tin plating, supporting 5.2A per pin across a broad temperature range. The connector offers excellent mating durability, RoHS compliance, and is suitable for various industrial and electronic applications. Its precise specifications, including insertion depth, force, and coplanarity, ensure seamless integration into your manufacturing processes for long-term operation.
Get Samtec SSM112LSV today—built for maximum contact reliability and long-lasting durability in demanding PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC SSM112LSV?
You can click on the BUY or RFQ button to purchase SSM112LSV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM112LSV?
You can download the SSM112LSV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM112LSV?
SAMTEC
