SAMTEC SSM113LSH Surface Mount Socket
The product is a surface mount socket designed for high reliability and durability in electronic assemblies. With gold and tin plating options over phosphor bronze contacts, it supports operating temperatures from -85°C to +125°C. Features include an insertion depth range of approximately 4.34 mm to 7.24 mm, a current rating of 5.2A per pin, and an insulation material made of black liquid crystal polymer. Suitable for various configurations, it ensures maximum mated cycles and RoHS compliance, ideal for complex PCB applications.
SAMTEC SSM113LSH Surface Mount Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temp Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Depth: 4.34 mm to 7.24 mm
- Insulation Material: Polyimide film
- RoHS Compatible: Yes
- Processing: Lead-Free Solderable
- Maximum Cavity Coplanarity: Less than 0.20 mm for more than 27 positions

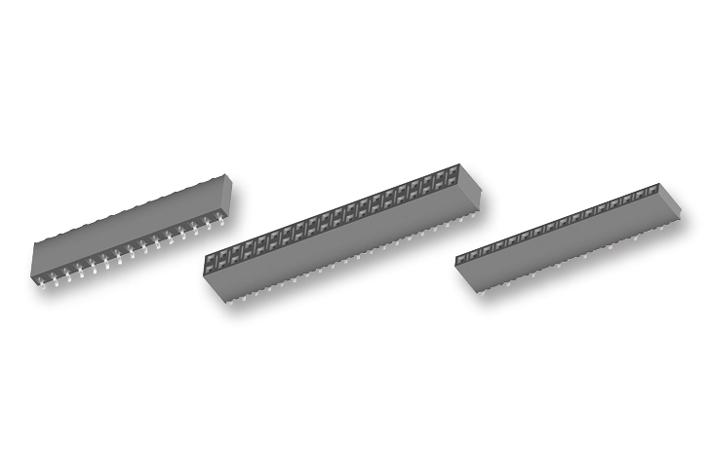

Buy the Buy Samtec SSM113LSH Part Number SSM113LSH Online
Secure your electronics with the high-quality surface mount socket designed for maximum durability and reliable connections. Featuring gold and tin plating over phosphor bronze, this socket supports up to 5.2 amps per pin and operates efficiently between -85°C and +125°C. Its RoHS compliance ensures eco-friendly manufacturing. Perfect for complex PCB assemblies, it ensures maximum mating cycles with low contact resistance. A must-have component for professional electronics, offering easy installation and long-lasting performance for industrial, commercial, and high-tech applications.
Buy Samtec SSM113LSH now and experience unmatched reliability and performance in high-density PCB applications.
Frequently Asked Questions
Where can I buy SAMTEC SSM113LSH?
You can click on the BUY or RFQ button to purchase SSM113LSH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM113LSH?
You can download the SSM113LSH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM113LSH?
SAMTEC
