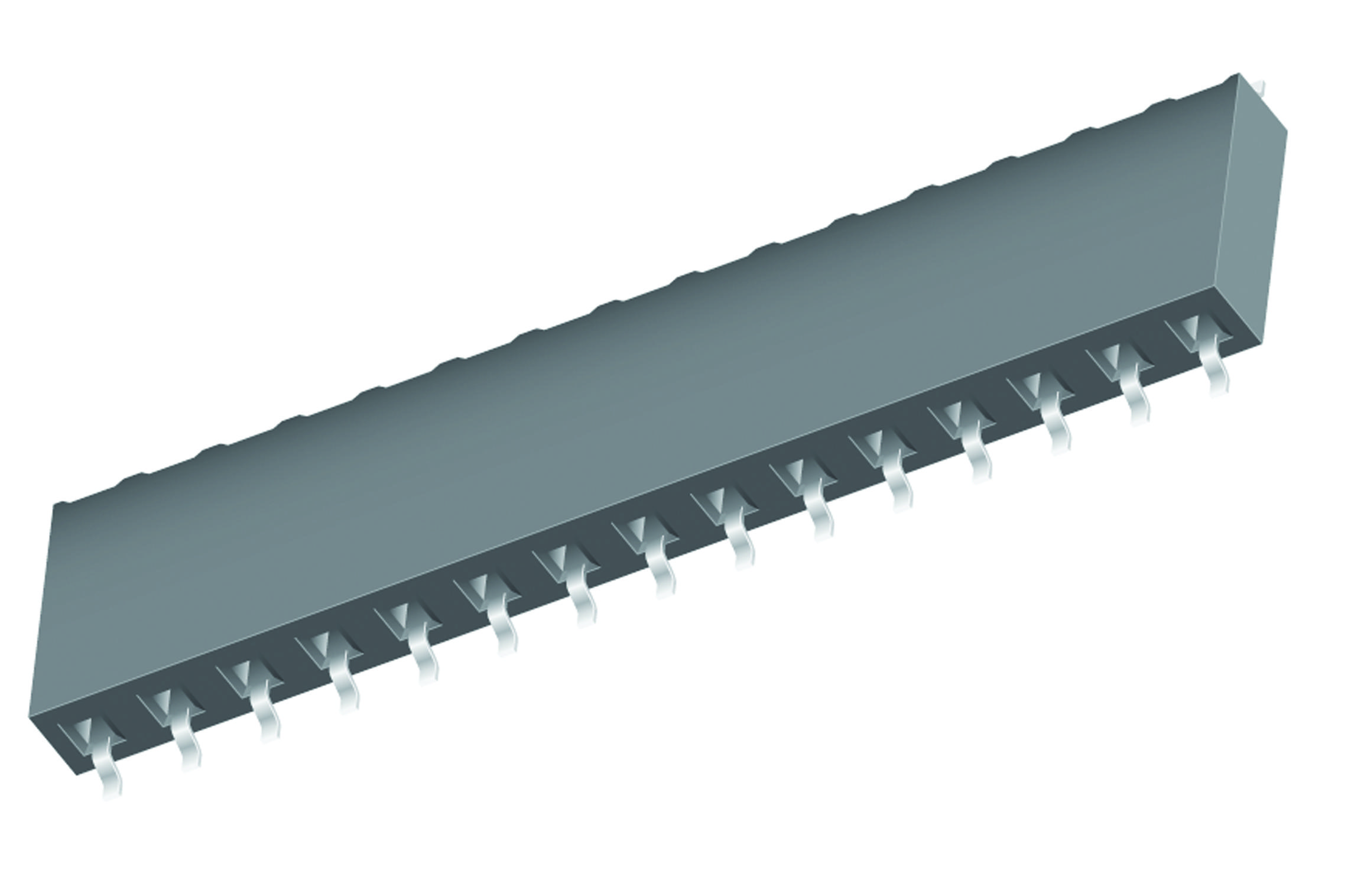

SAMTEC SSM114LSH High-Rel Connector
The product is a high-reliability connector designed with black Liquid Crystal Polymer insulation and phosphor bronze contacts. It features gold or tin plating over nickel, supporting currents up to 5.2A per pin and operating at voltages up to 475 VAC. Suitable for temperature ranges from 85°C to 125°C with gold plating and 85°C to 105°C with tin. The connector offers an insertion depth up to 0.171 inches, with a force of approximately 5 oz for insertion and 2.07 oz for withdrawal, ensuring secure and durable connections.
SAMTEC SSM114LSH High-Rel Connector Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin over 50u" Nickel
- Current Rating: 5.2A per pin
- Voltage Rating: 475 VAC
- Temperature Range: 85°C to 125°C (Gold), 85°C to 105°C (Tin)
- Contact Resistance: 10 mΩ at 10 mA
- Insertion Depth: Up to 0.171 inches (4.34 mm)
- Insertion Force: 5 oz (1.39 N)
- Withdrawal Force: 2.07 oz (0.56 N)
- Number of Pins: 2 to 40
- Coplanarity: Less than 0.006 inches (0.15-0.20 mm) depending on number of positions
- Operating Temp: -55°C to +125°C
- Certifications: RoHS compliant
- Suitable for PCB mounting with extended life design
Buy the Buy SAMTEC SSM114LSH Part Number SSM114LSH Online
Purchase the high-reliability connector designed with Liquid Crystal Polymer insulation and phosphor bronze contacts. Supports 5.2A per pin at 475 VAC and operating temperatures from -55°C to +125°C with gold plating. Features an insertion depth of approximately 0.171 inches, with secure connection forces ideal for demanding electronic assemblies. Its robust design ensures durability, excellent electrical performance, and compliance with RoHS standards. Order now to enhance your electronic projects with a trusted, extended life connector manufactured for precision and reliability.
Get SAMTEC SSM114LSH today—built for precision and long-lasting durability in high-reliability electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC SSM114LSH?
You can click on the BUY or RFQ button to purchase SSM114LSH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM114LSH?
You can download the SSM114LSH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM114LSH?
SAMTEC
