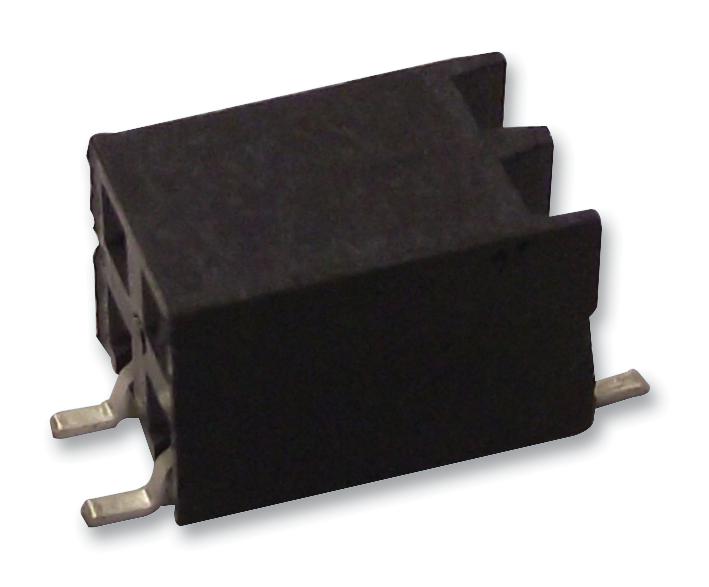

SAMTEC SSM115LDH Mixed Flowing Gas Connector
The SSM-115-L-SH is an extended life mixed flowing gas connector with black liquid crystal polymer insulators and phosphor bronze contacts plated with gold or tin. It features a current rating of 5.2 A per pin, operates within a temperature range of -55°C to +125°C with gold plating and -55°C to +105°C with tin, and has a voltage rating of 475 VAC for SV/DV and 450 VAC for SH. The connector's rugged construction ensures high-performance reliable connections suitable for demanding electronic applications, with easy insertion and withdrawal forces, and coplanarity for multiple positions.
SAMTEC SSM115LDH Mixed Flowing Gas Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze with Gold or Tin plating
- Current Rating: 5.2 A per pin
- Voltage Rating: 475 VAC (SV/DV), 450 VAC (SH)
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 7 milliohms
- Insertion Force: 5 oz (1.39 N) per contact
- Withdrawal Force: 4 N (approximate average)
- Coplanarity: Less than 0.006 inches (0.15 mm) for up to 28 positions, 0.008 inches (0.20 mm) for more than 27
- Number of Positions: 2 to 40
- Pass-through: Up to 24 mm (0.285 inches)
- Durability: Designed for extended life, reliable electrical connections
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
Buy the Samtec Series SSM Connector: SSM-115-L-SH
Buy the Samtec SSM-115-L-SH connector online today and experience robust, high-performance electrical connectivity. Featuring durable liquid crystal polymer insulators, phosphor bronze contacts with gold or tin plating, and a voltage rating of up to 475 VAC, this connector ensures reliable operation in demanding applications. Its temperature range from -55°C to +125°C and current capacity of 5.2 A per pin make it ideal for high-reliability electronic assemblies. Order now to benefit from quick delivery and quality assurance for your next project.
Get Samtec SSM-115-L-SH today—built for precision, high current capacity, and long-lasting durability in demanding electronic environments.
Frequently Asked Questions
Where can I buy SAMTEC SSM115LDH?
You can click on the BUY or RFQ button to purchase SSM115LDH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM115LDH?
You can download the SSM115LDH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM115LDH?
SAMTEC
