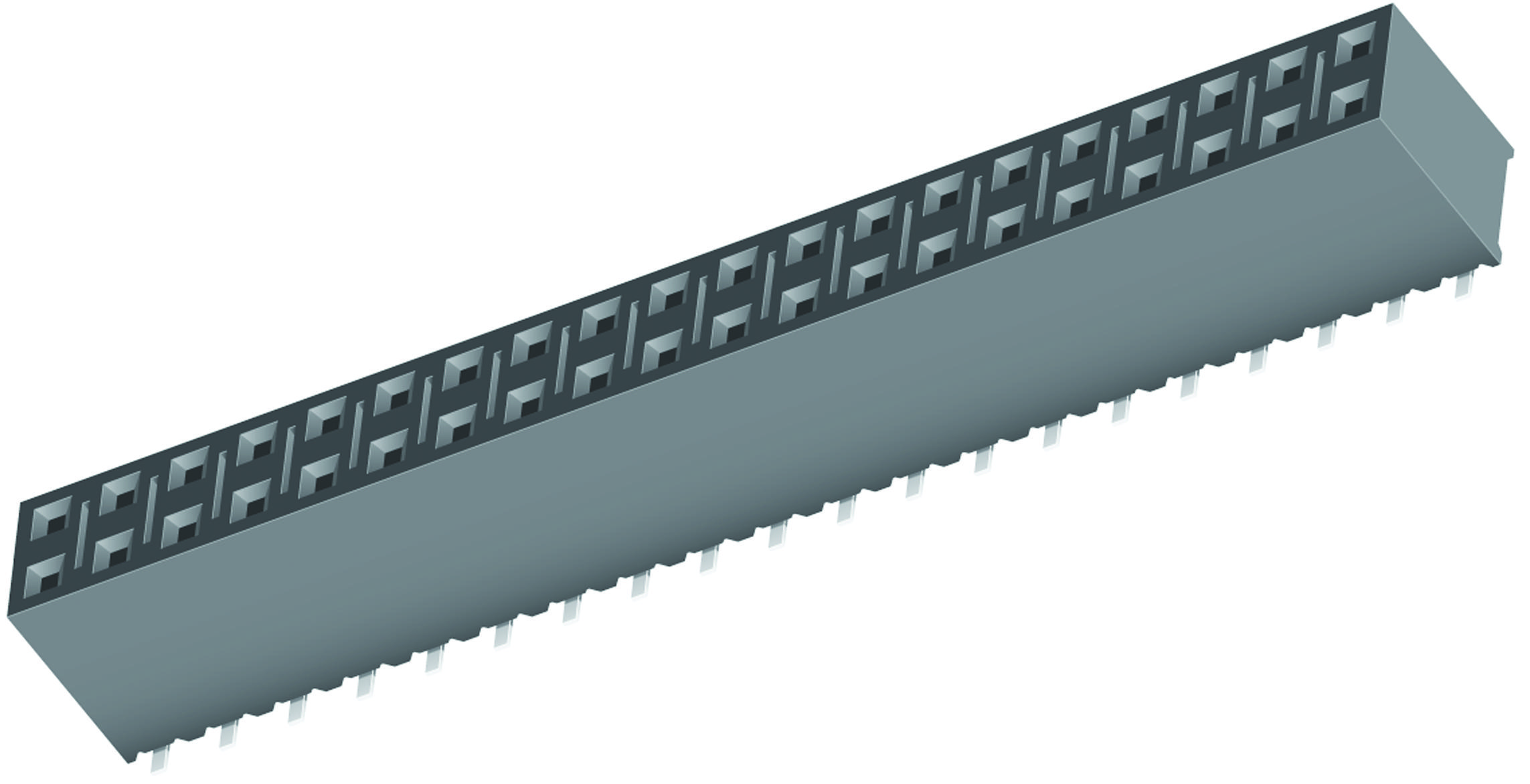

SAMTEC SSM115LDV High-Rel Socket
The sampler socket is designed for high reliability connections in PCB applications, featuring Phosphor Bronze contacts plated with Au or Sn over Ni. It supports current ratings of 5.2A per pin and voltage ratings up to 405 VAC or 572 VDC. The socket operates within a temperature range of -85°C to +125°C with Gold plating. It features an insertion depth of up to 7.24 mm and is RoHS compliant. Suitable for surface-mount applications, it ensures maximum mated cycles with coplanarity less than 0.006 inches, providing durable, precise connections in industrial electronics.
SAMTEC SSM115LDV High-Rel Socket Specifications:
- Material: Phosphor Bronze with Au or Sn over Ni plating
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temperature Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: up to 7.24 mm
- Maximum Insertion Force: 5 oz (1.39 N) per contact
- Withdrawal Force: 2 oz (0.56 N) per contact
- RoHS compliant, Lead-Free Solderable
- Coplanarity: Less than 0.006 inches for less than 28 positions, 0.008 inches for more than 27 positions
- Design: Surface mount with alignment pin, pass-through from top, suitable for maximum mated cycles
Buy the Samtec Series High-Durability PCB Socket: SSM115LDV
Purchase the Samtec SSM115LDV high-reliability PCB socket online today. Designed with durable phosphor bronze contacts and gold or tin plating, this socket supports up to 5.2A per pin and voltage ratings of 405 VAC. Its precision design ensures low contact resistance, excellent coplanarity, and excellent stability across environments from -85°C to +125°C. Compatible with surface-mount technology, it offers seamless installation, maximum mating cycles, and RoHS compliance. Ideal for demanding industrial electronics, investir in this socket for high-performance connections and long-term durability.
Get Samtec SSM115LDV today—built for maximum reliability and long-lasting durability in industrial PCB applications.
Frequently Asked Questions
Where can I buy SAMTEC SSM115LDV?
You can click on the BUY or RFQ button to purchase SSM115LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM115LDV?
You can download the SSM115LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM115LDV?
SAMTEC
