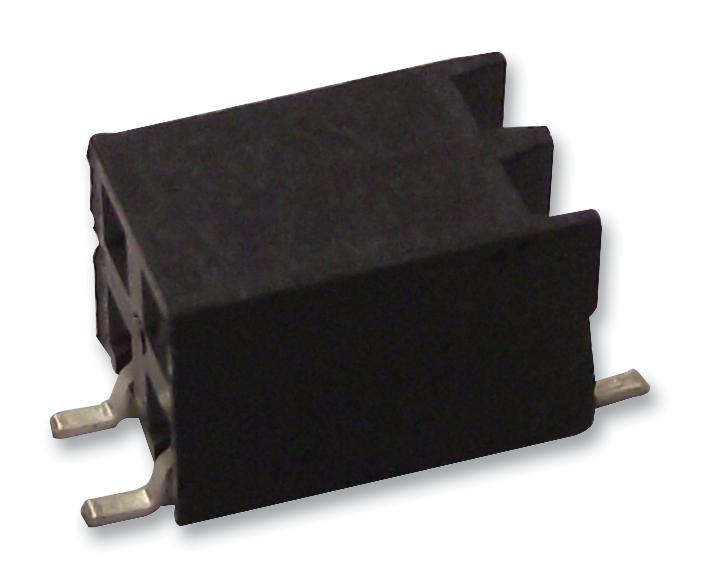

SAMTEC SSM120LDH Surface Mount Socket
The SSM120LDH is a high-reliability surface mount socket designed for precise electronic connections. Made from black liquid crystal polymer insulator and phosphor bronze contact material, it features gold or tin plating over nickel and supports a current rating of 5.2A per pin. Operating within -85°C to +125°C depending on plating, it offers minimum contact resistance of 10 milliohms and an insertion depth of 4.34 mm to 7.24 mm. RoHS compliant, it supports lead-free soldering, ensuring durability for maximum mated cycles and efficient, stable connectivity in electronic applications.
SAMTEC SSM120LDH Surface Mount Socket Specifications:
- Material: Black Liquid Crystal Polymer insulator, Phosphor Bronze contact
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temp Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Depth: 4.34 mm to 7.24 mm
- Insertion Force: 5 oz (1.39 N) average
- Withdrawal Force: 2 oz (0.56 N) average
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Coplanarity: Less than 0.15 mm for up to 27 positions
- Surface Mount Design with alignment pin
Buy the Buy Samtec SSM120LDH Part Number SSM120LDH Online
Order the Samtec SSM120LDH surface mount socket online today for high durability and precise electronic connections. Designed with black liquid crystal polymer and phosphor bronze contacts, it supports up to 5.2A per pin and features gold or tin plating over nickel for enhanced corrosion resistance. Operating in temperatures from -85°C to +125°C, it is RoHS compliant and suitable for lead-free soldering. This socket ensures maximum mated cycles, stability, and reliable performance for your electronic assembly needs.
Get Samtec SSM120LDH today—built for maximum mated cycles and reliable surface mounting in electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SSM120LDH?
You can click on the BUY or RFQ button to purchase SSM120LDH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM120LDH?
You can download the SSM120LDH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM120LDH?
SAMTEC
