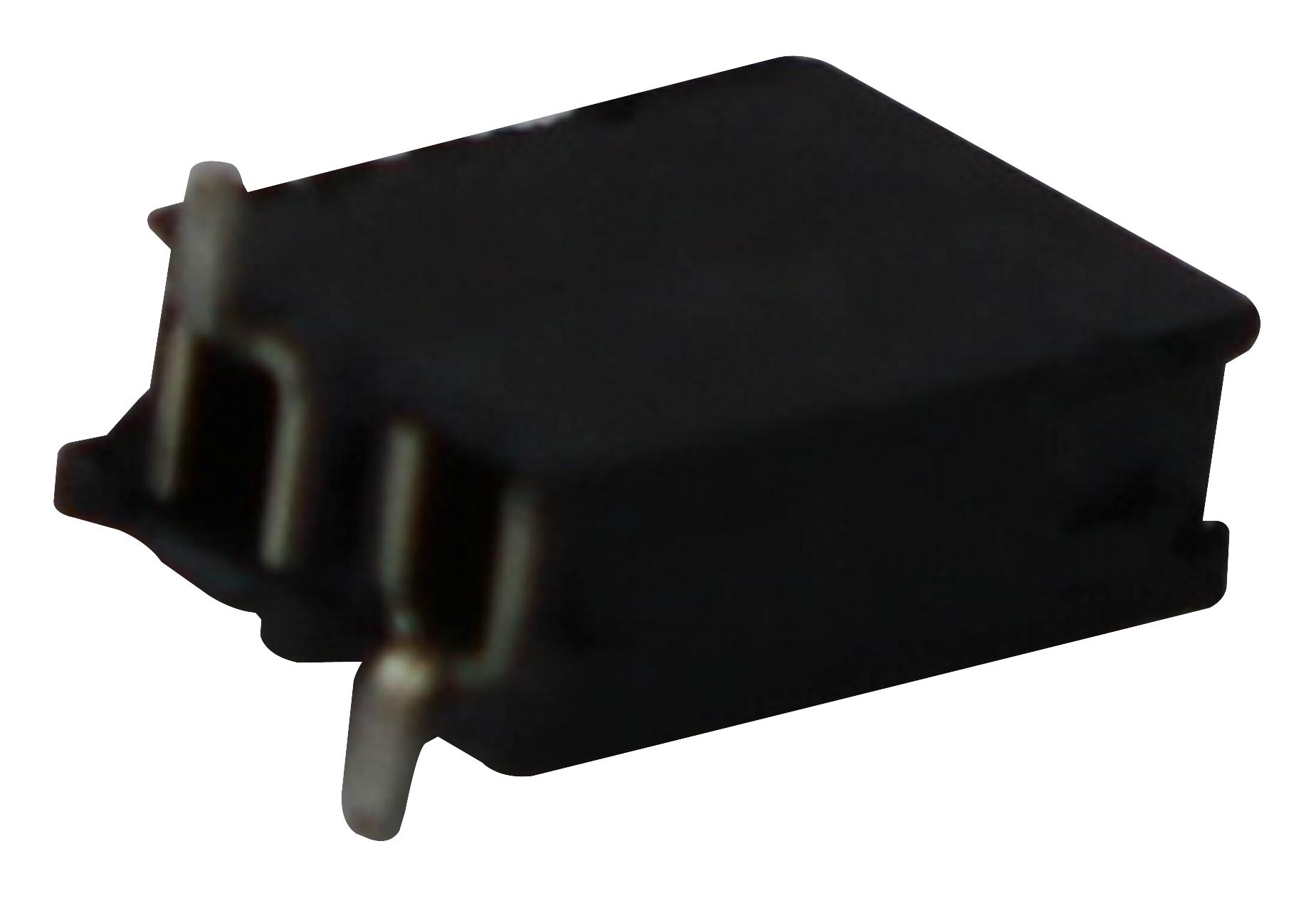

SAMTEC SSM120LSV surface-mount socket
The SSM120LSV is a high-reliability surface-mount socket designed for industrial applications requiring robust electrical connections. Constructed with Phosphor Bronze contacts and black liquid crystal polymer insulators, it offers excellent thermal performance with an operating temperature range of -85°C to +125°C with Gold plating and -85°C to +105°C with Tin plating. The socket supports current ratings up to 5.2A per pin, withstands voltages up to 405 VAC/572 VDC, and features low contact resistance of 10 milliohms. Its coplanarity is less than 0.006 inches for up to 28 positions, ensuring precise alignment in dense circuit assemblies.
SAMTEC SSM120LSV surface-mount socket Specifications:
- Material: Black Liquid Crystal Polymer insulator, Phosphor Bronze contacts
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2A per pin
- Voltage: 405 VAC / 572 VDC
- Operating Temp Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Depth: 4.34 mm to 7.24 mm, ±0.006" maximum coplanarity for up to 28 positions
- Insertion Force: 5 oz (1.39 N) per contact, Pass-through from top or bottom
- Withdrawal Force: 2 oz (0.56 N) average
- RoHS Compliant: Yes
- Process: Lead-Free Solderable
- Maximum coplanarity for more than 27 positions: 0.008"
