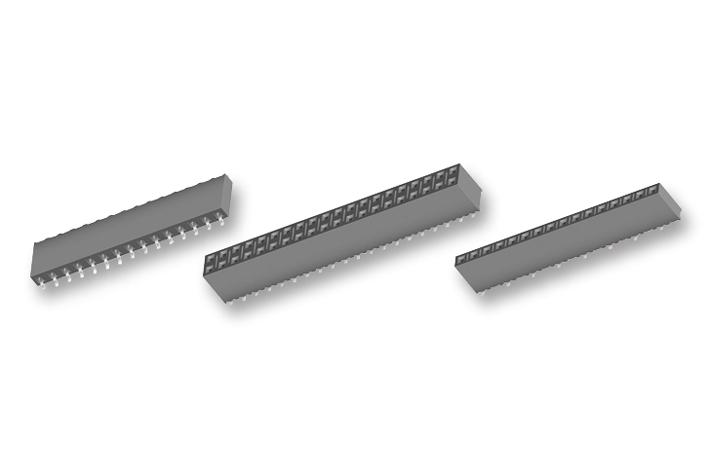

SAMTEC SSM124LSV High-Durability Electrical Socket
The SSM-124-L-SV is a high-quality, surface-mount socket designed for maximum durability and reliable connections in electronic assemblies. Constructed with black liquid crystal polymer insulators and gold-plated contacts, this product supports current ratings up to 5.2 A per pin and voltage ratings of 405 VAC / 572 VDC. It features an operating temperature range from -55°C to +125°C, with precise insertion depths and low contact resistance. Suitable for applications requiring high cycle counts and robust electrical performance, it provides excellent coplanarity and mechanical stability for professional use.
SAMTEC SSM124LSV High-Durability Electrical Socket Specifications:
- Material: Liquid Crystal Polymer insulator with Gold plating
- Current Rating: 5.2 A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Insertion Depth: 4.54 mm (0.171 inches) to pass-through, 5.56 mm (0.219 inches) plus board thickness
- Contact Resistance: Not specified (-BE not available)
- Maximum Positions: 29 positions
- Coplanarity (-SH, -SV, -DV): 0.15 mm (0.006 inches)
- Lead-Free, RoHS Compliant
- Processing: Wave solderable, compliant with industry standards
- Durability: Designed for maximum mating cycles, reliable electrical performance
Buy the Samtec Series SSM Sockets: SSM124LSV
Order the Samtec SSM124LSV socket online today and ensure your electronic assemblies benefit from maximum durability, precise specifications, and reliable connections. This surface-mount socket features gold-plated contacts supporting 5.2A per pin and a voltage rating up to 405 VAC / 572 VDC. Its operating temperature range from -55°C to +125°C and robust design make it ideal for high cycle applications requiring consistent performance. Secure your supply of this essential component and optimize your product reliability now.
Buy Samtec SSM124LSV now and experience unmatched reliability, high current capacity, and robust performance in your electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC SSM124LSV?
You can click on the BUY or RFQ button to purchase SSM124LSV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM124LSV?
You can download the SSM124LSV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM124LSV?
SAMTEC
