SAMTEC SSM127LDH Surface Mount Socket
The SSM127LDH is a high-reliability surface mount socket designed for electronic components requiring maximum mate cycles and durability. Made from black liquid crystal polymer insulator and phosphor bronze contact material, it features gold or tin plating over nickel, offers a current rating of 5.2A per pin, and supports voltages up to 405 VAC or 572 VDC. Its robust build ensures excellent contact resistance of 10 milliohms, with a range of insertion depths and precise coplanarity for reliable connections in demanding applications. RoHS compliant and lead-free solderable for eco-conscious manufacturing.
SAMTEC SSM127LDH Surface Mount Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temp Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Depth: 4.34 mm to 7.24 mm (0.171" to 0.285") or pass-through from top
- Insertion Force: 5 oz (1.39 N) average
- Withdrawal Force: 2 oz (0.56 N) average
- RoHS Compliant: Yes
- Processing: Lead-Free, Solderable
- Coplanarity: Less than 0.20 mm (0.008") for more than 27 positions
- Maximum number of positions: 29

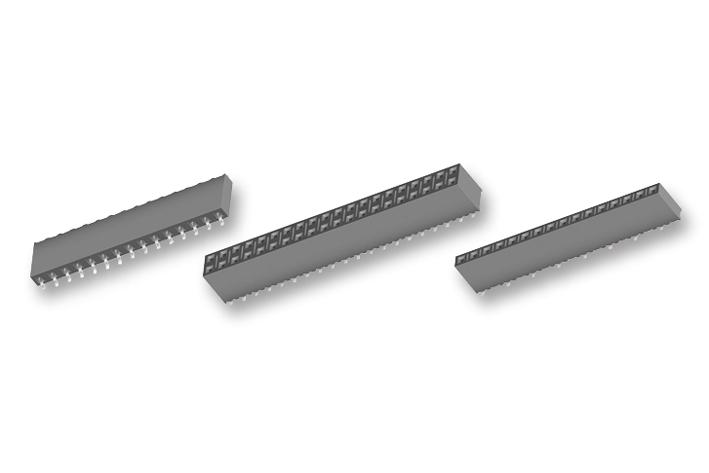

Buy the Buy Samtec SSM127LDH Part Number SSM127LDH Online
Purchase the Samtec SSM127LDH surface mount socket online today and ensure your electronic assemblies achieve maximum mate cycles and exceptional durability. Designed with high-quality phosphor bronze contacts and advanced liquid crystal polymer insulation, this socket withstands harsh temperature ranges from -85°C to +125°C with gold plating, or -85°C to +105°C with tin plating. Its compact design supports various insertion depths, features low contact resistance, and is RoHS compliant, making it ideal for high-performance and eco-friendly projects requiring reliable, long-lasting connections.
Buy Samtec SSM127LDH now and experience unmatched durability and reliable electronic connections in your assembly.
Frequently Asked Questions
Where can I buy SAMTEC SSM127LDH?
You can click on the BUY or RFQ button to purchase SSM127LDH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM127LDH?
You can download the SSM127LDH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM127LDH?
SAMTEC
