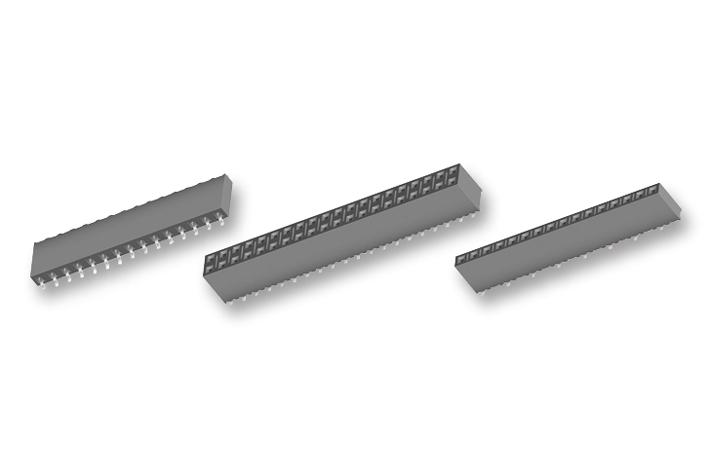

SAMTEC SSM127LDV Surface Mount Connector
The socket is a high-reliability, surface-mount connector designed for industrial and electronic applications. Made with a black liquid crystal polymer insulator and phosphor bronze contacts, it features gold or tin plating over nickel for improved durability. It supports operating temperatures from -85°C to +125°C, with a current rating of 5.2A per pin and voltage ratings up to 572 VDC. The socket offers precise coplanarity, easy insertion and withdrawal forces, RoHS compliance, and is designed for maximum mating cycles in demanding environments.
SAMTEC SSM127LDV Surface Mount Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temp Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm (.171") to 7.24 mm (.285") pass-through
- Insertion Force: 5 oz (1.39 N) average per contact
- Withdrawal Force: 2 oz (0.56 N) average per contact
- RoHS Compliant: Yes
- Processing: Lead-Free, Solderable
- Coplanarity: Less than 0.15 mm (.006") for up to 28 positions
- Maximum Pin Positions: 29
- Length Dependence: Based on number of positions, 100 x No. of positions (mm)
Buy the Samtec SSM127LDV – Reliable Surface Mount Connector for Industrial Applications
Order the Samtec SSM127LDV surface mount connector online today and benefit from a high-performance, durable, and RoHS compliant solution ideal for industrial and electronic applications. Designed for maximum cycles, it features phosphor bronze contacts with gold or tin plating, supporting high temperatures up to 125°C, and provides easy insertion and withdrawal with precise coplanarity. Perfect for demanding environments requiring reliable electrical connectivity and long-lasting performance. Purchase now to ensure your projects meet all industrial standards efficiently.
Get Samtec SSM127LDV today—built for precision, durability, and maximum mating cycles in high-demand environments.
Frequently Asked Questions
Where can I buy SAMTEC SSM127LDV?
You can click on the BUY or RFQ button to purchase SSM127LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM127LDV?
You can download the SSM127LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM127LDV?
SAMTEC
