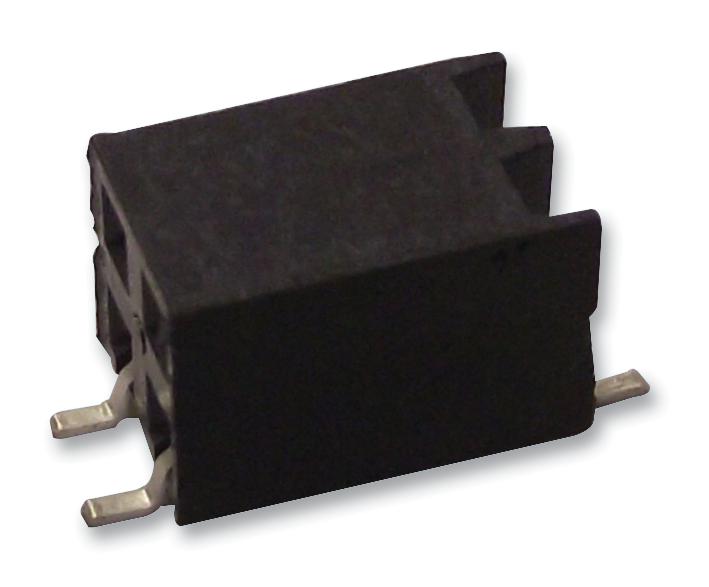

SAMTEC SSM130LDH Surface Mount Socket
The SSM130LDH is a high-performance surface mount socket designed for reliable electrical connections in demanding applications. Constructed with black liquid crystal polymer insulator material and phosphor bronze contact material, it features gold or tin plating over nickel, ensuring excellent conductivity and corrosion resistance. Capable of handling up to 405 VAC and 572 VDC with a current rating of 5.2A per pin, this socket offers precise insertion depth and high durability for maximum mated cycles. Its RoHS compliance and lead-free solderability make it ideal for modern electronic assemblies.
SAMTEC SSM130LDH Surface Mount Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating (SSM/TSW): 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temp Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm to 7.24 mm
- Insertion Force: 5 oz (1.39 N) (single contact)
- Withdrawal Force: 2 oz (0.56 N) (single contact)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Coplanarity: Less than 0.20 mm for more than 27 positions
- Maximum Length: 15 mm for less than 28 positions
- Supports maximum mated cycles with high reliability
- Suitable for surface mount PCB assembly with pass-through options
Buy the Buy Samtec SSM130LDH Part Number SSM130LDH Online
Order the Samtec SSM130LDH surface mount socket online today to ensure your electronic device features reliable, high-capacity connections. Built with high-quality materials including phosphor bronze contacts and liquid crystal polymer insulators, this socket provides excellent electrical conductivity and temperature performance. Its gold or tin plating over nickel enhances corrosion resistance, while its RoHS compliance and lead-free solderability meet modern industry standards. Perfect for demanding applications requiring maximum mated cycles, this socket guarantees long-lasting performance and easy PCB mounting, making your manufacturing process efficient and dependable.
Get Samtec SSM130LDH today—designed for durable, reliable connections in high-current applications with maximum mated cycles.
Frequently Asked Questions
Where can I buy SAMTEC SSM130LDH?
You can click on the BUY or RFQ button to purchase SSM130LDH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM130LDH?
You can download the SSM130LDH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM130LDH?
SAMTEC
