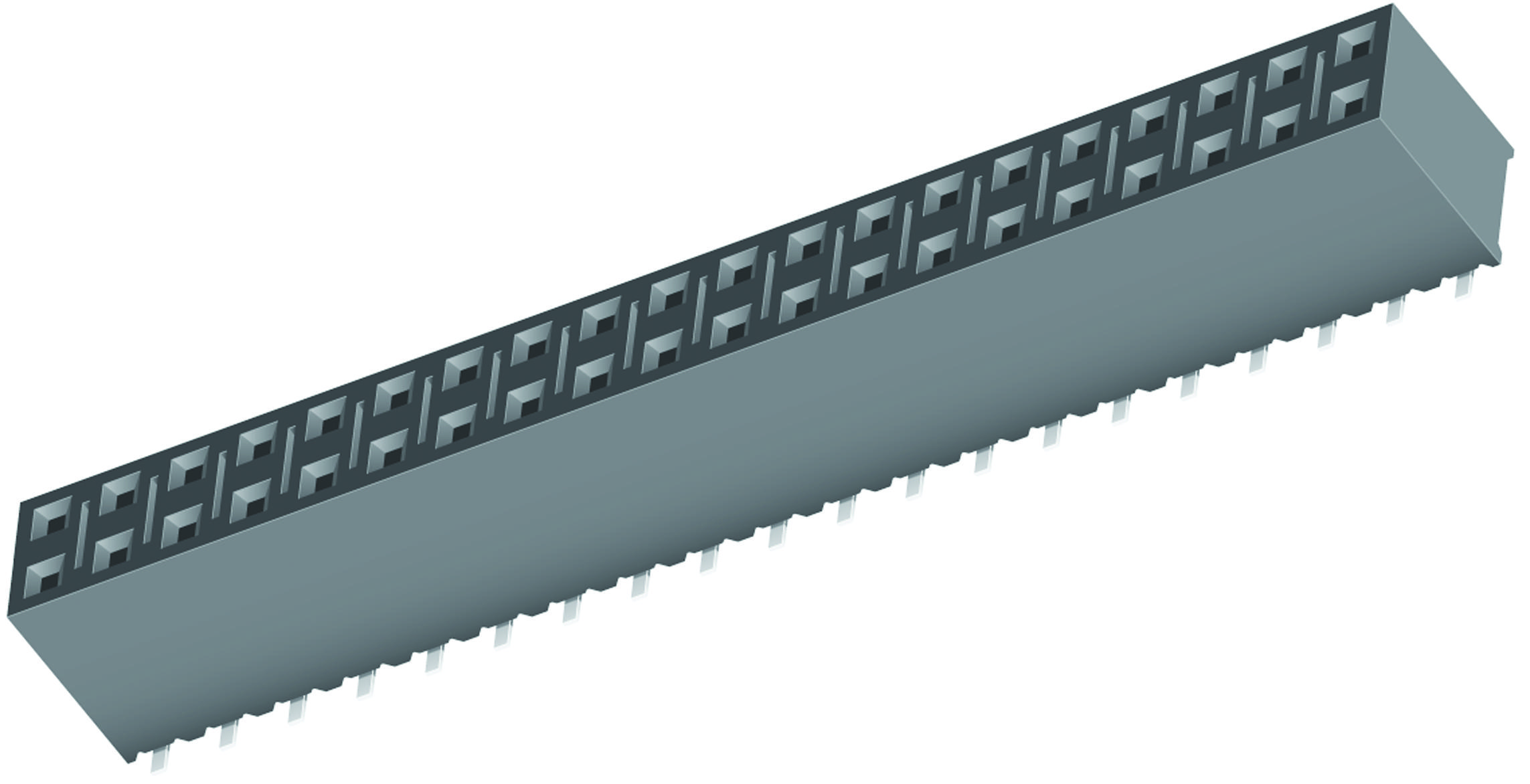

SAMTEC SSM130LDV Mixed Flowing Gas Connector
The SSM130LDV is a high-reliability mixed flowing gas connector designed for versatile electronic applications. It features a black liquid crystal polymer insulator and phosphor bronze contact material, suitable for high-temperature environments. Capable of handling up to 5.2 A per pin with a voltage rating of 475 VAC for SV and DV models, it ensures optimal electrical performance. With a contact resistance of 7 milliohms and an operating temperature range from -55°C to +125°C with gold or +105°C with tin, it provides robust durability and precise alignment for reliable connections in demanding industries.
SAMTEC SSM130LDV Mixed Flowing Gas Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze with Gold or Tin plating
- Current Rating: 5.2 A per pin
- Voltage Rating: 475 VAC for SV/DV models, 450 VAC for SH models
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 7 milliohms
- Insertion Force: 5 oz (1.39 N) per single contact
- Withdrawal Force: 207.058 N per single contact
- Lead-Free Solderable: Yes
- Coplanarity: 0.006 inches (0.15 mm) max for less than 28 positions, 0.008 inches (0.20 mm) max for more than 27 positions
Buy the Samtec Series SSM: Mixed Flowing Gas Connector SSM130LDV
Purchase the Samtec Series SSM130LDV mixed flowing gas connector online today and benefit from high reliability, versatile high-temperature operation, and durable contacts. Perfect for demanding industrial and electronic applications, it features a black liquid crystal polymer insulator, phosphor bronze contacts, and a current capacity of 5.2 A per pin. With a voltage rating of 475 VAC, it ensures safe operation within -55°C to +125°C for gold-plated contacts. Enjoy seamless online buying with fast delivery and guaranteed quality for your critical projects.
Order your Samtec Series SSM130LDV high-temperature mixed flowing gas connector today and ensure dependable, reliable electrical connections in demanding environments.
Frequently Asked Questions
Where can I buy SAMTEC SSM130LDV?
You can click on the BUY or RFQ button to purchase SSM130LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM130LDV?
You can download the SSM130LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM130LDV?
SAMTEC
