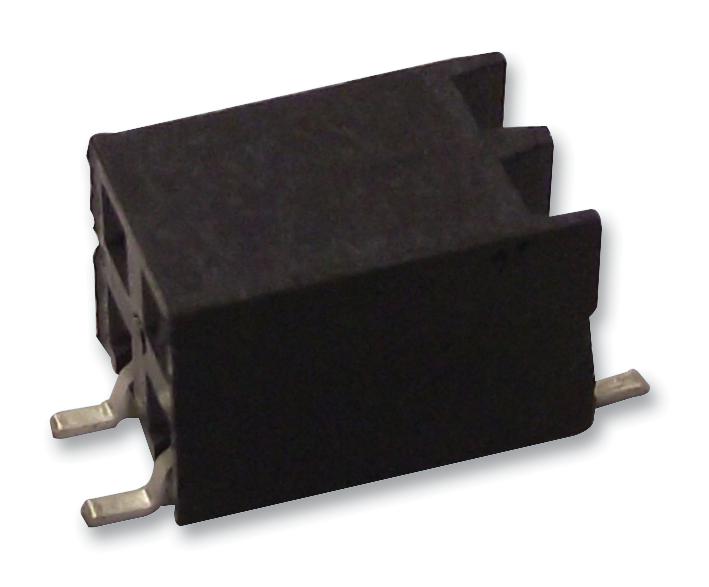

SAMTEC SSM135LDH Flowing Gas Connector
The SSM135LDH is a high-reliability, surface-mount socket designed for flowing gas applications, offering extended life and maximum mating cycles. Constructed with black liquid crystal polymer insulator material, it features gold or tin plating options for optimal corrosion resistance and current capacity. With a voltage rating of 405 VAC / 572 VDC and operating temperatures from -55°C to +125°C, it supports up to 5.2 A per pin. Its compact design with precise alignment pins ensures easy insertion, making it suitable for demanding industrial and electronic applications requiring durable connector solutions.
SAMTEC SSM135LDH Flowing Gas Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Plating: Gold or Tin options
- Current Rating: 5.2 A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temperature Range: -55°C to +125°C with gold, -55°C to +105°C with tin
- Insertion Depth: 4.54 mm (.171") to 7.24 mm (.285") for SV/DV models, 4.34 mm (.171") to 6.35 mm (.250") for SH/DH models
- Contact Resistance: Not available for BE
- Number of Positions: Up to 29
- Coplanarity: 0.15 mm (.006") max for SH, SV, DV
- Processing: Lead-Free Solderable, compliant
- Lead-Free Soldérable: Yes
- Crimp/Connection: Designed for maximum mated cycles in industrial connectors
Buy the Samtec SSM135LDH – Reliable Connector for Industrial Applications
Order the Samtec SSM135LDH flowing gas connector online today and enjoy exceptional reliability, extended operational life, and high current capacity. Featuring gold or tin plating options and a robust design, this surface-mount socket ensures quick, secure connections suitable for demanding industrial, electronic, and automation systems. Its wide temperature range and compliance with lead-free soldering standards make it ideal for a variety of applications needing durable, precise connector solutions. Purchase now to ensure your project benefits from proven quality and excellent performance.
Get Samtec SSM135LDH today—built for precision, high current capacity, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC SSM135LDH?
You can click on the BUY or RFQ button to purchase SSM135LDH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM135LDH?
You can download the SSM135LDH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM135LDH?
SAMTEC
