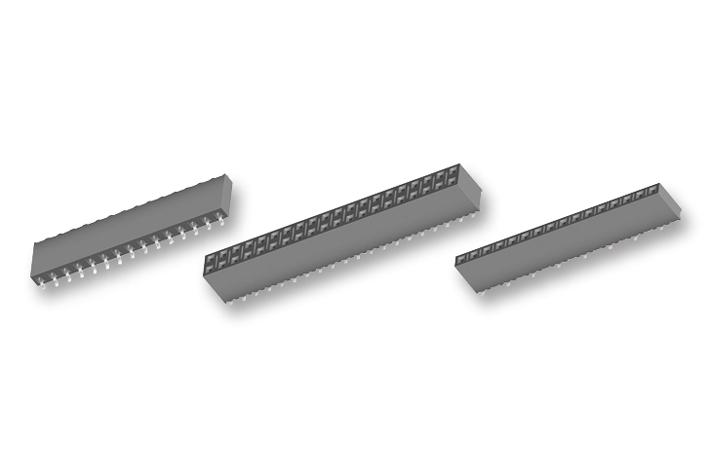

SAMTEC SSM135LSH Surface Mount Socket
The Samtec SSM135LSH is a surface mount socket designed for high-reliability electrical connections in industrial and electronic applications. Made with black liquid crystal polymer insulator and phosphor bronze contacts, it features gold or tin over nickel plating for enhanced durability. The socket supports current ratings up to 5.2A per pin and voltage ratings of 405 VAC or 572 VDC. Operating temperatures range from -85°C to +125°C with gold plating, and from -85°C to +105°C with tin. It offers low contact resistance, easy insertion and withdrawal forces, and RoHS compliance for environmentally friendly manufacturing. With coplanarity tolerances less than 0.15 mm, it suits complex high-density assemblies. Its robust design ensures maximum mated cycles and is engineered for longevity in strenuous industrial settings, providing reliable, secure connections for PCB and electronic module applications.
SAMTEC SSM135LSH Surface Mount Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" (1.27 μm) Ni
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temp Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 mΩ max
- Insertion Depth: 4.34 mm to 7.24 mm (SV/DV), 4.34 mm to 6.35 mm (SH/DH)
- Insertion Force: 5 oz (1.39 N) average for single contact
- Withdrawal Force: 2 oz (0.56 N) average for single contact
- Coplanarity: Less than 0.15 mm (0.006") max for SH, SV, DV; Less than 0.20 mm (0.008") max for more than 27 positions
- RoHS Compliant: Yes
- Processing: Lead-Free, Solderable
- Design Features: Alignment pin, high cycle life, surface mount
- Certifications: See www.samtec.com/quality
