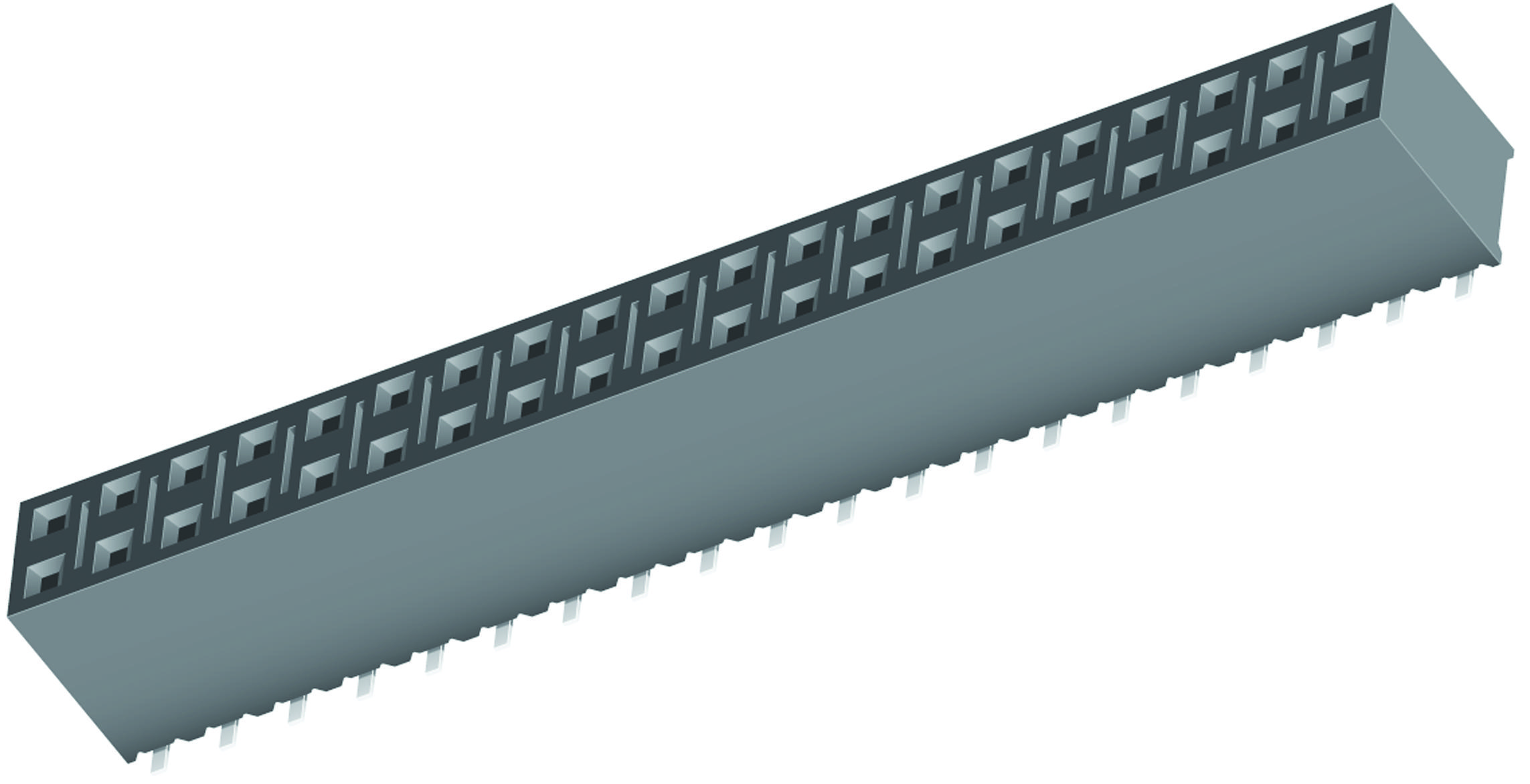

SAMTEC SSM140LDV Surface-Mount Socket
The SSM140LDV is a high-reliability, surface-mount socket designed for industrial applications that require robust electrical connections and durability. Constructed with phosphor bronze contacts and black liquid crystal polymer insulators, it offers excellent thermal and mechanical stability, operating within -85°C to +125°C. It features gold or tin plating over nickel, handling currents of 5.2A per pin at up to 405 VAC / 572 VDC. With pass-through options and low contact resistance, this socket ensures secure, long-lasting connections for demanding electronic assemblies.
SAMTEC SSM140LDV Surface-Mount Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Nickel
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temperature Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm to 7.24 mm
- Insertion Force: 5 oz (1.39 N) average
- Withdrawal Force: 2 oz (0.56 N) average
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Coplanarity: Less than 0.20 mm for more than 27 positions
- Processing: Lead-Free, RoHS compliant, suitable for surface mounting
Buy the Samtec SSM140LDV – Reliable Contact Socket for Industrial Applications
Purchase the Samtec SSM140LDV surface-mount socket online today and upgrade your electronic projects with a durable, high-performance contact solution. Designed for industrial use, it offers excellent thermal stability, low contact resistance, and reliable electrical performance. Featuring phosphor bronze contacts, liquid crystal polymer insulator, and gold or tin plating, this socket is compatible with lead-free soldering and RoHS standards. Its compact design ensures easy integration into circuit boards, delivering maximum durability and long lifecycle for demanding applications. Get yours now to enhance your electronic systems with confidence.
Order your Samtec SSM140LDV series high-current socket today and ensure your electronic assemblies are protected with dependable, long-lasting connections.
Frequently Asked Questions
Where can I buy SAMTEC SSM140LDV?
You can click on the BUY or RFQ button to purchase SSM140LDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM140LDV?
You can download the SSM140LDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM140LDV?
SAMTEC
