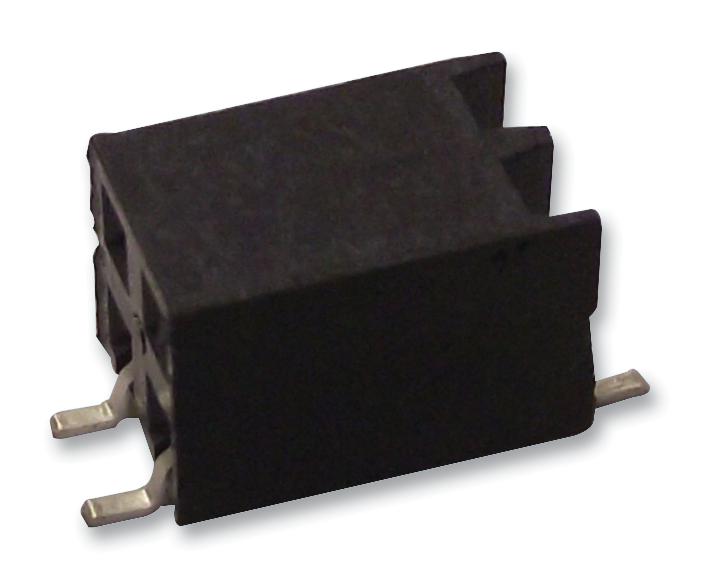

SAMTEC SSM150LDH Surface Mount Socket
The SSM150LDH is a high-reliability surface-mount socket designed for industrial applications. Made from black Liquid Crystal Polymer with phosphor bronze contacts, it features gold or tin plating over nickel for enhanced durability and corrosion resistance. Capable of operating from -85°C to +125°C with gold and up to +105°C with tin, it supports currents up to 5.2A per pin at 405 VAC / 572 VDC. With a low insertion force and RoHS compliance, it ensures secure connections, pass-through options, and maximum mated cycles for demanding electronic assemblies.
SAMTEC SSM150LDH Surface Mount Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" (1.27 μm) Ni
- Current Rating: 5.2A per pin
- Voltage Rating: 405 VAC / 572 VDC
- Operating Temperature Range: -85°C to +125°C with Gold, -85°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.34 mm to 7.24 mm, pass-through from top, minimum board thickness plus 5.56 mm from bottom
- Insertion Force: 5 oz (1.39 N) per contact
- Withdrawal Force: 2 oz (0.56 N) per contact
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Coplanarity: Less than 0.20 mm for more than 27 positions
- Processing: RoHS compliant, lead-free soldering
- Max number of mated cycles: Extended life product, durable for maximum cycles
Buy the Samtec SSM150LDH – Reliable Surface Mount Socket for Industrial Applications
Enhance your electronic assemblies with the durable and highly reliable surface mount socket designed for industrial and harsh environment applications. Made with high-quality phosphor bronze contacts and liquid crystal polymer insulators, it offers excellent performance with RoHS compliance, high current capacity of 5.2A per pin, and voltage ratings up to 405 VAC. This socket supports maximum mated cycles, low insertion and withdrawal forces, and supports lead-free soldering, ensuring your project’s long-term success. Buy online today for a trusted connection solution.
Order your Samtec Series SSM150LDH high-reliability surface-mount socket today and give your projects the dependable quality they deserve, ensuring secure connections and long-lasting performance in harsh environments.
Frequently Asked Questions
Where can I buy SAMTEC SSM150LDH?
You can click on the BUY or RFQ button to purchase SSM150LDH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM150LDH?
You can download the SSM150LDH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM150LDH?
SAMTEC
