SAMTEC SSQ10201GS Square Post Socket
The through-hole square post socket features a black liquid crystal polymer insulator and phosphor bronze contact material for high reliability. Available with gold or tin plating, it supports currents up to 6.3 A per pin and operates within -55°C to +125°C. With a standard insertion force of 6 oz and a maximum of 100 mating cycles, it is designed for durable, high-performance applications. Suitable for various mating connectors, it ensures efficient electrical connection and thermal stability, making it ideal for complex electronic assemblies requiring precise connectivity.
SAMTEC SSQ10201GS Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin
- Current Rating: 6.3 A per pin
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 3.68 mm to 6.35 mm
- Insertion Force: Standard 6 oz, Low Force 3 oz, Very Low Force 2.6 oz
- Normal Force: 125 grams
- Withdrawal Force: Standard 5 oz, Low Force 2.6 oz, Very Low Force 2.9 oz
- Max Cycles: 100
- Voltage Rating: 550 VAC (mated with TSW)
- RoHS Compliant: Yes

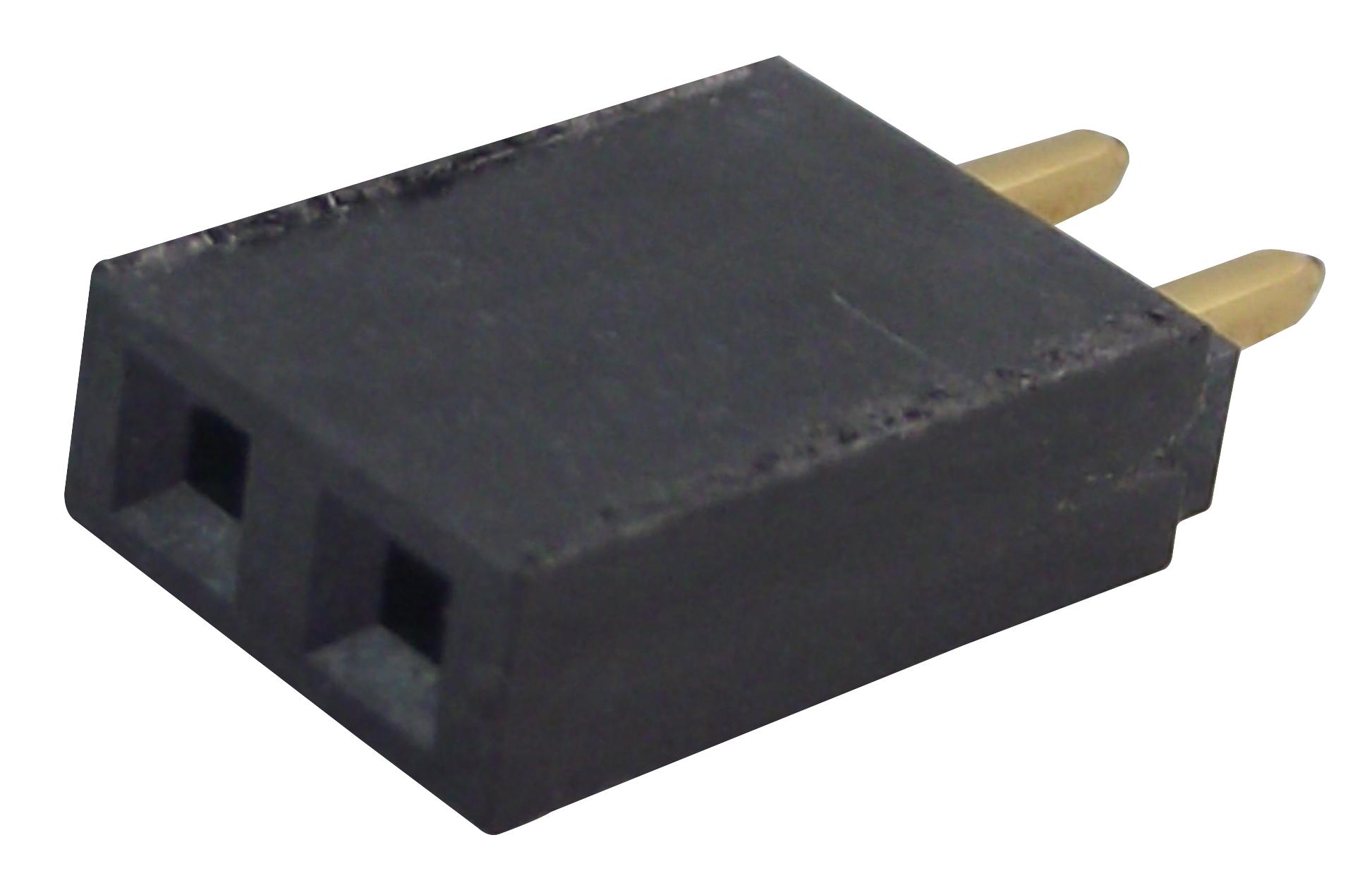

Buy the Samlec Series Square Post Socket: SSQ10201GS
Enhance your electronic projects with the high-quality square post socket from Samtec. Designed for durability, it features a liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating. Capable of handling up to 6.3 A per pin, it operates efficiently in temperature ranges from -55°C to +125°C. With a maximum of 100 mating cycles, this socket provides reliable connections for complex electronic assemblies requiring precise, secure, and long-lasting electrical contacts.
Buy Samtec SSQ10201GS now and experience unmatched reliability and high-performance electrical connectivity for your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SSQ10201GS?
You can click on the BUY or RFQ button to purchase SSQ10201GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ10201GS?
You can download the SSQ10201GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ10201GS?
SAMTEC
