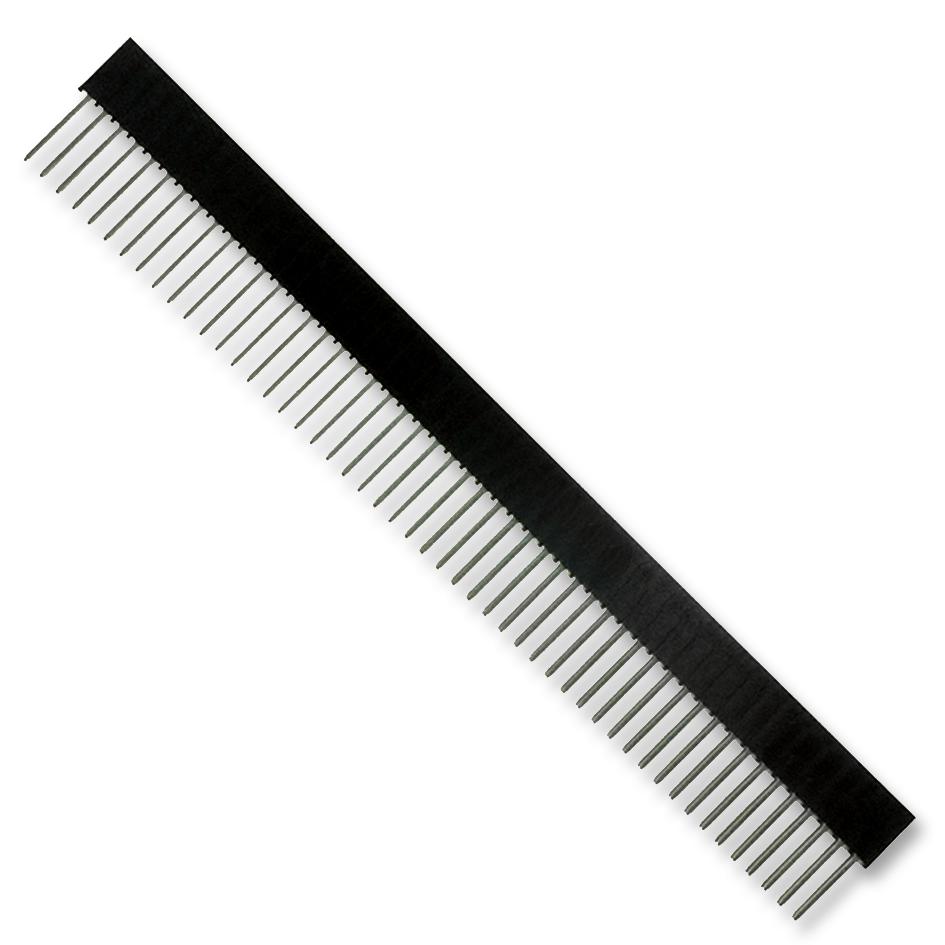

SAMTEC SSQ10403GS Electrical Socket
The product is a through-hole socket series designed for industrial applications, featuring low insertion force options, gold and tin plating, and operating temperature ranges from -55°C to +125°C. It incorporates a crystal polymer insulator, copper alloy contacts, and various configurations with multiple pin positions, including single, double, and triple lead styles. Suitable for high-reliability electronic connections, it provides low contact resistance, high voltage ratings, and RoHS compliance. Practical for engineers requiring durable and efficient connector solutions in complex systems.
SAMTEC SSQ10403GS Electrical Socket Specifications:
- Contact Material: Phosphor Bronze with gold or tin plating
- Insulator Material: Crystal Polymer
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: Max 10 mΩ
- Insertion Depth: 3.68 mm (0.145"), 6.35 mm (0.254")
- Insertion Force: Standard 6 oz (1.67 N), Low Insertion Force 3 oz (0.83 N)
- Withdrawal Force: 5 oz (1.39 N) (single contact)
- Voltage Rating: Suitable for high-voltage applications
- Current Rating: 7.6A @ 20°C, 6.9A @ 40°C, 5.9A @ 60°C
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Maximum Cycles: 100 connect/disconnect cycles
Buy the Samtec SSQ Series – Reliable Through-Hole Socket for Industrial Applications
Enhance your electronic assembly with Samtec SSQ Series through-hole sockets, offering low insertion force options, high-temperature operation, and lead-free solderability. Designed for durability, these connectors feature gold and tin plating for optimal conductivity, and multiple pin configurations suitable for complex systems. With RoHS compliance and robust contact materials, they ensure long-term performance and reliability in industrial, automation, and electronic device applications. Order online today to secure high-quality, easy-to-install socket solutions for your critical projects.
Buy Samtec SSQ Series sockets now and experience unmatched reliability and performance in your electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSQ10403GS?
You can click on the BUY or RFQ button to purchase SSQ10403GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ10403GS?
You can download the SSQ10403GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ10403GS?
SAMTEC
