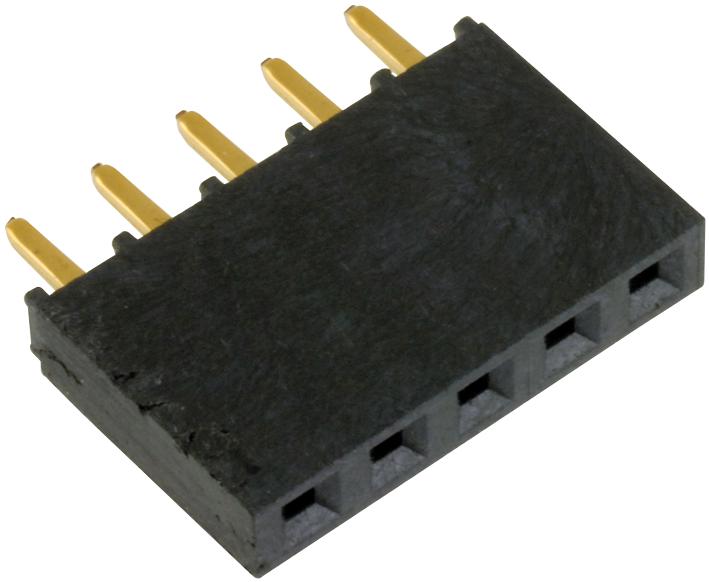

SAMTEC SSQ10501GS005 Power Socket
The product is a through-hole socket with a 2.54 mm (.100 inch) pitch, featuring a black Liquid Crystal Polymer or high-temperature thermoplastic insulator. It has a phosphor bronze contact material with optional gold or tin plating, suitable for current ratings up to 6.3 A and voltage ratings of 465 VAC / 655 VDC. Designed to operate between -55°C to +125°C with gold plating, or -55°C to +105°C with tin, its various options include different lead, row, and plating configurations for reliable electrical connections in high-temperature environments. Suitable for power and signal applications, it ensures durability, RoHS compliance, and compatibility with standard mate connectors.
SAMTEC SSQ10501GS005 Power Socket Specifications:
- Pitch: 2.54 mm (.100 inch)
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, with Ni underlayer
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm to 6.35 mm
- Force: Standard 125 grams (4.4 N)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samtec Series SSQ Power Socket: SSQ10501GS005
Purchase the Samtec power socket online today for high-quality, reliable electrical connections suited for power and signal applications. This high-temperature through-hole socket features phosphor bronze contacts with optional gold or tin plating, ensuring durability, RoHS compliance, and excellent performance in harsh environments. Operating from -55°C to +125°C, it offers versatile configurations, including various lead and row options, to fit your specific needs. Trust Samtec’s quality and enhance your electronic assemblies with this robust, easy-to-mate socket available now for quick online ordering.
Order your Samtec Series SSQ power socket today and ensure reliable, high-temperature electrical connections for your demanding projects.
Frequently Asked Questions
Where can I buy SAMTEC SSQ10501GS005?
You can click on the BUY or RFQ button to purchase SSQ10501GS005 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ10501GS005?
You can download the SSQ10501GS005 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ10501GS005?
SAMTEC
