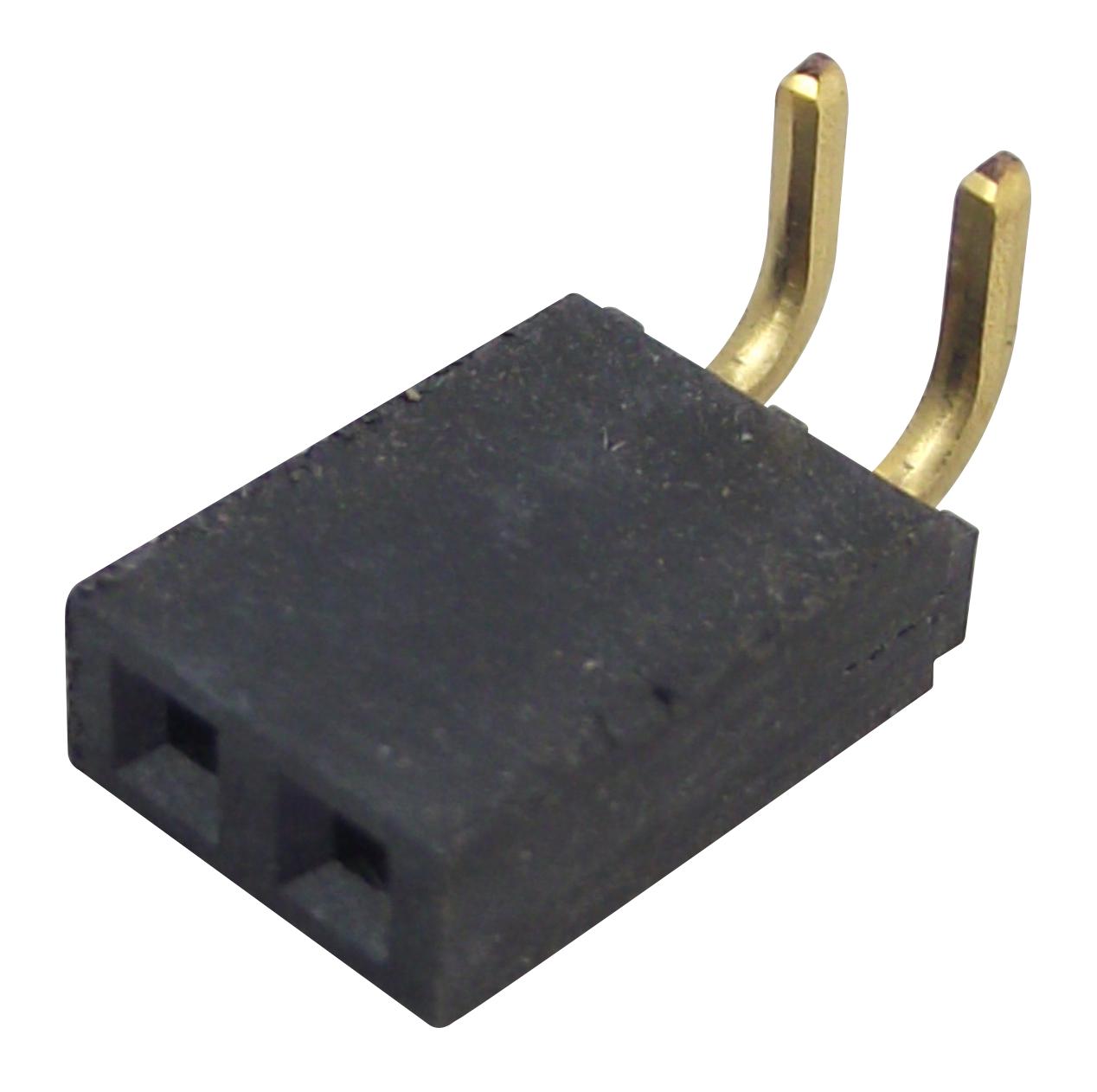

SAMTEC SSQ10502SSRA Square Post Socket
The product is a through-hole square post socket featuring black Liquid Crystal Polymer or high-temperature thermoplastic insulator material, phosphor bronze contacts, and gold or tin plating. It supports current ratings up to 6.3 A per pin, with operating temperatures ranging from -55°C to +125°C depending on plating. Designed with standard insertion force of 125 grams, it accommodates various lengths and rows, including straight and right-angle versions. The socket conforms to RoHS standards, is lead-free solderable, and is compatible with multiple mating connectors, making it suitable for high-reliability electronic applications.
SAMTEC SSQ10502SSRA Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, 50 yt" Ni
- Current Rating: 6.3 A per pin
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm to 6.35 mm
- Standard Force: 125 grams (4.4 N)
- Voltage Rating: 465 VAC / 655 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Connectors support various row options including single, double, and triple rows with different lead styles
- Compatible with multiple mating connectors including TSW, MTSW, MTLW, and others
- Suitable for high-reliability electronic and industrial applications
Buy the Samtec Series SSQ Through-Hole Square Post Socket: SSQ10502SSRA
Purchase the Samtec Series SSQ Square Post Socket online today for dependable electrical connections. This high-quality socket features durable phosphor bronze contacts, versatile insulator options, and RoHS compliance. Designed for high currents up to 6.3 A per pin and wide temperature ranges from -55°C to +125°C, it supports various lengths and configurations including straight and right-angle versions. Easy to solder and compatible with multiple mating connectors, this socket ensures reliable performance and long-lasting stability in demanding electronic applications.
Order your Samtec Series SSQ through-hole square post socket today and give your electronics the reliable, high-quality connection they need.
Frequently Asked Questions
Where can I buy SAMTEC SSQ10502SSRA?
You can click on the BUY or RFQ button to purchase SSQ10502SSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ10502SSRA?
You can download the SSQ10502SSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ10502SSRA?
SAMTEC
