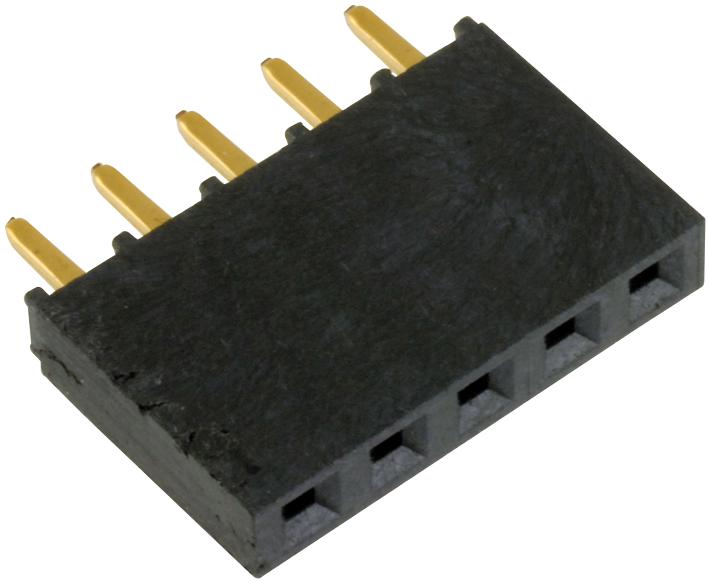

SAMTEC SSQ10601TSLL High-Temperature Through-Hole Socket
The through-hole socket features a black liquid crystal polymer insulator with options for high-temperature thermoplastic. Made of phosphor bronze with gold or tin plating, it supports currents up to 6.3 A and voltage ratings of 465 VAC / 655 VDC. Designed for ease of insertion with standard force of 125 grams, it operates from -55°C to +125°C with gold plating and -55°C to +105°C with tin. Compatible with various mating connectors, it is RoHS compliant and suitable for high-reliability electrical connections in demanding environments.
SAMTEC SSQ10601TSLL High-Temperature Through-Hole Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin with 50 μ
- Ni coating
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm (pin length), 6.35 mm (alternative length)
- Standard Insertion Force: 125 grams (4.4 N)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Mates With: TSW, MTSW, MTLW, Ew, ZW, TSS, ZSS, TSM, TSSH, HTSS
- Contact Arrangement: Multiple rows and options available
- Notch Option: Available upon request
- Other Platings: Gold, Tin, with various thickness options
- Environment: Suitable for high-reliability applications in demanding environments
Buy the Buy Samtec SSW-125-01-G-S Part Number SSQ10601TSLL Online
Purchase the high-temperature through-hole socket online for dependable electrical connections in demanding environments. This socket features phosphor bronze contacts with gold or tin plating, supporting up to 6.3 A current and 465 VAC voltage. Its robust design allows operation from -55°C to +125°C with gold, ideal for high-reliability applications. RoHS compliance ensures environmentally friendly manufacturing. Whether for industrial, automation, or control systems, buy this versatile socket online today for quick, secure, and reliable electrical connections that ensure long-lasting performance.
Get Samtec SSW-125-01-G-S today—built for high current and temperature durability, ideal for reliable electrical connections in demanding applications.
Frequently Asked Questions
Where can I buy SAMTEC SSQ10601TSLL?
You can click on the BUY or RFQ button to purchase SSQ10601TSLL from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ10601TSLL?
You can download the SSQ10601TSLL datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ10601TSLL?
SAMTEC
