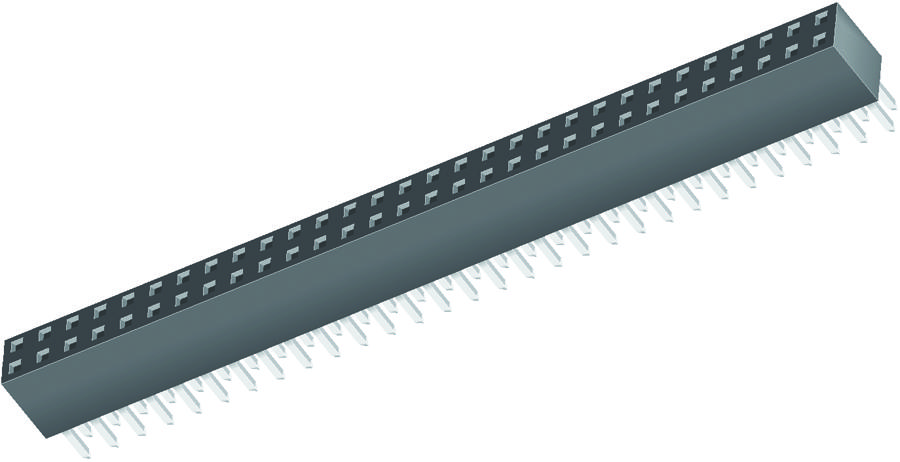

SAMTEC SSQ10701GD through-hole socket
This through-hole socket features a 0.025-inch square post design made with phosphor bronze contacts plated in gold or tin, suitable for high-reliability electrical connections. It has an insulator made from liquid crystal polymer or high-temperature thermoplastic, supporting operating temperatures from -55°C to +125°C. The socket supports up to 100 insertion/removal cycles, with rated currents of 5.7A per pin and 6.3A per row, and a maximum voltage rating of 550VAC. Its precise dimensions and force specifications ensure secure, low-force mating for various electronic applications, including testing and component mounting.
SAMTEC SSQ10701GD through-hole socket Specifications:
- Contact Material: Phosphor Bronze
- Plating Options: Gold or Tin
- Insulator Material: Liquid Crystal Polymer or High-Temperature Thermoplastic
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Current Rating: 5.7A per pin, 6.3A per row
- Maximum Voltage Rating: 550 VAC
- Insertion Depth: 0.145" to 0.250" (3.68mm to 6.35mm)
- Contact Resistance: 10 mΩ
- Maximum Cycles: 100
- RoHS Compliant: Yes
- Standard Insertion Force: 6 oz (1.67 N), Low Force: 3 oz (0.83 N), Very Low Force: 2.6 oz (0.72 N)
- Withdrawal Force: Standard 5 oz (1.39 N), Low Force 2.9 oz (0.81 N)
Buy the Samlec Series Through-Hole Socket: SSQ10701GD
Order the Samlec through-hole socket SSQ10701GD online today for reliable electrical connections in your electronic projects. Featuring gold or tin plating, it supports up to 100 insertion cycles with a temperature range of -55°C to +125°C, providing durable performance for various industrial and testing applications. Its robust construction with phosphor bronze contacts and precise dimensions ensures secure, low-force mating. Perfect for engineers and technicians, this socket guarantees excellent contact resistance, current handling, and compliance with RoHS standards, making it an essential component for high-quality electronic assemblies.
Buy Samlec SSQ10701GD now and experience unmatched reliability and performance with high contact quality and secure connection features.
Frequently Asked Questions
Where can I buy SAMTEC SSQ10701GD?
You can click on the BUY or RFQ button to purchase SSQ10701GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ10701GD?
You can download the SSQ10701GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ10701GD?
SAMTEC
