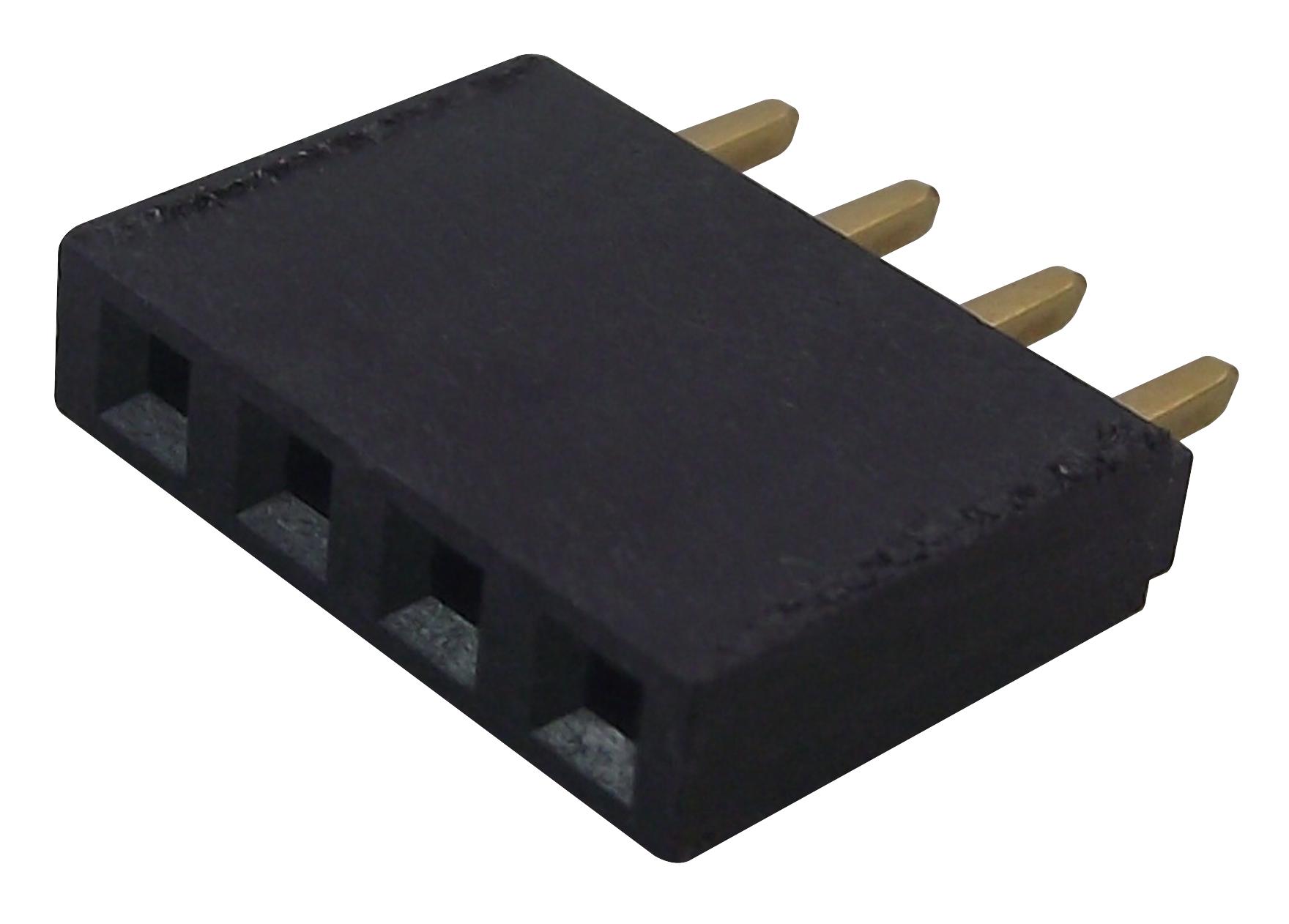

SAMTEC SSQ10702GS Through-Hole Socket
This high-temperature through-hole socket features a 2.54 mm pitch and 0.025 inch square post design, supporting up to 4.7A per pin. It is made from black high-temperature insulator material with phosphor bronze contacts plated with tin, nickel, or other options. Suitable for various electronic assembly applications, it offers reliable mating with compatible connectors, withstanding temperatures from -55°C to +105°C. Its robust construction ensures durability and consistent electrical performance for industrial and electronic equipment requiring secure, high-current connections.
SAMTEC SSQ10702GS Through-Hole Socket Specifications:
- Pitch: 2.54 mm
- Post Size: 0.025 inch square
- Current Rating: 4.7 Amperes per pin
- Temperature Range: -55°C to +105°C
- Insulator Material: Black high-temperature thermoplastic
- Contact Material: Phosphor bronze with tin or nickel plating
- Housing Style: Through-hole socket with optional right-angle versions
- Platings: Tin, gold flash, or other options available
- Max number of positions: Up to 36 pins
- Assembly: Compatible with standard and custom mounting configurations
Buy the Samtec Series SSQ Through-Hole Socket: SSQ10702GS
Order the Samtec SSQ10702GS through-hole socket online today and benefit from quick delivery, premium quality, and a reliable connection solution for your electronic projects. This high-temperature rated socket is perfect for industrial applications where durability and performance are critical. Featuring a 2.54 mm pitch, 0.025 inch square posts, and rated for 4.7A per pin, it ensures secure and efficient connections. Its robust design withstands harsh environments, making it an ideal choice for demanding electronic assemblies and customized configurations. Purchase now to guarantee performance and reliability.
Buy Samtec SSQ10702GS now and experience unmatched reliability and performance with durable high-temperature sockets for electronic assembly.
Frequently Asked Questions
Where can I buy SAMTEC SSQ10702GS?
You can click on the BUY or RFQ button to purchase SSQ10702GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ10702GS?
You can download the SSQ10702GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ10702GS?
SAMTEC
