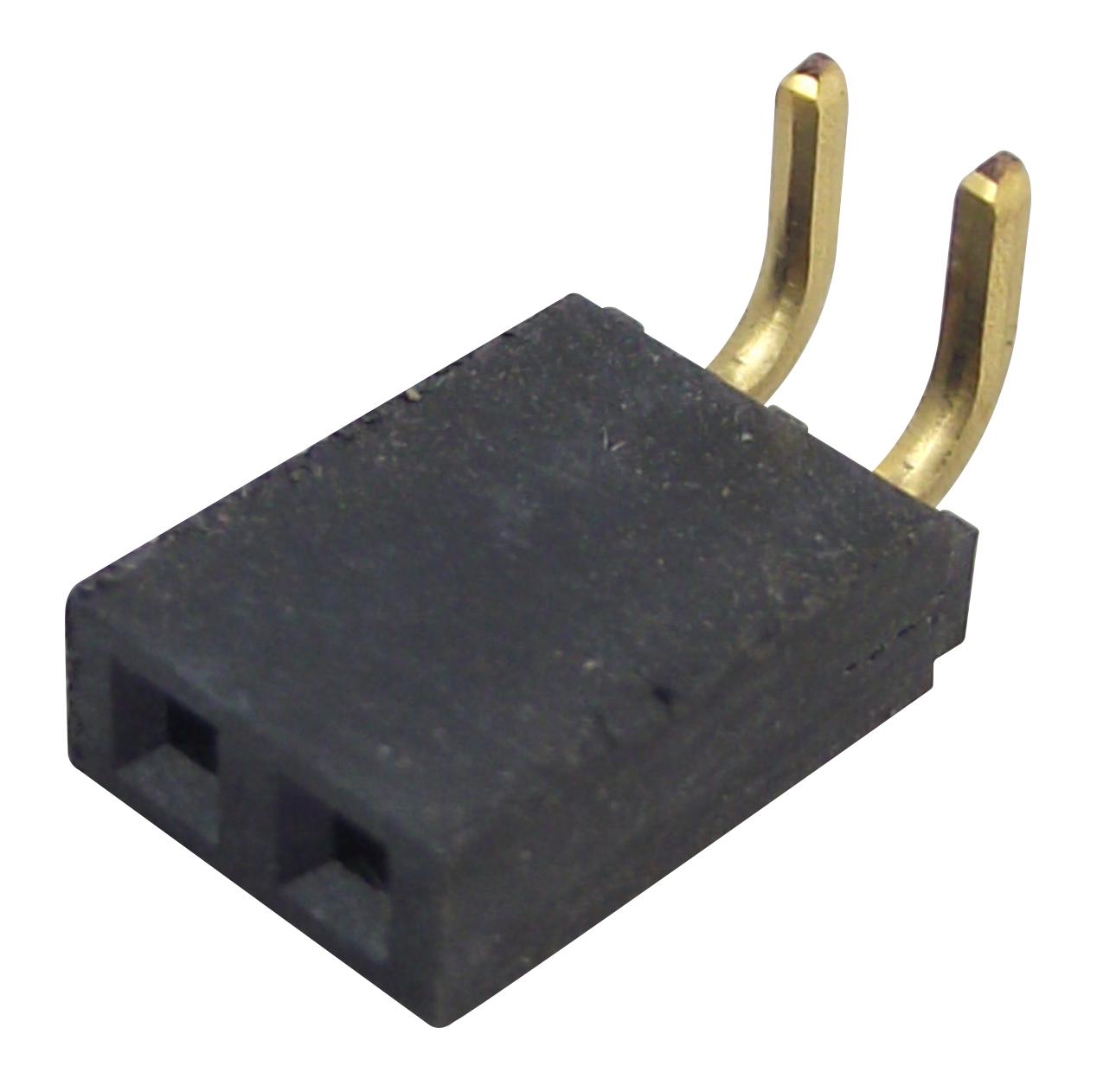

SAMTEC SSQ10902SSRA Through-Hole Socket
The product is a high-quality through-hole socket designed for reliable electrical connections in electronic assemblies. Made with black high-temperature insulator material and phosphor bronze contacts, it offers excellent thermal stability and durability. The socket features gold or tin plating for optimal conductivity and corrosion resistance. Suitable for various applications, it accommodates up to 36 pins with a contact pitch of 2.54 mm. It is designed for easy insertion and removal, ensuring stable electrical performance in demanding environments. Compatible with different mounting styles, it supports robust and secure connections for reliable operation.
SAMTEC SSQ10902SSRA Through-Hole Socket Specifications:
- Insulator Material: Black High Temperature
- Contact Material: Phosphor Bronze
- Plating Options: Gold flash (0.51 μm) or Tin
- Contact Pitch: 2.54 mm (.100 inch)
- Number of Positions: Up to 36 pins
- Current Rating: 4.7 Amperes per pin
- Temperature Range: -55°C to +105°C
- Mounting Style: Through-hole
- Ingress Protection: Not specified
- Physical Dimensions: Length varies with configuration, typical tail length approximately 6.35 mm
- Compatibility: Suitable for electronic modules and circuit boards
- Certifications: Not specified
Buy the Samtec Series SQ Through-Hole Socket: SSQ10902SSRA
Purchase the Samtec Through-Hole Socket SSQ10902SSRA online today to ensure your electronic assemblies have reliable, durable connectors. Made with high-temperature insulators and phosphor bronze contacts, it features gold or tin plating for optimal conductivity. This socket is designed for easy insertion and removal, accommodating up to 36 pins with a 2.54 mm pitch. It supports a temperature range up to 105°C, making it suitable for a wide variety of industrial and electronic applications. Order now for quality and reliability.
Get Samtec SSQ10902SSRA today—built for precise, long-lasting connections and reliable performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC SSQ10902SSRA?
You can click on the BUY or RFQ button to purchase SSQ10902SSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ10902SSRA?
You can download the SSQ10902SSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ10902SSRA?
SAMTEC
