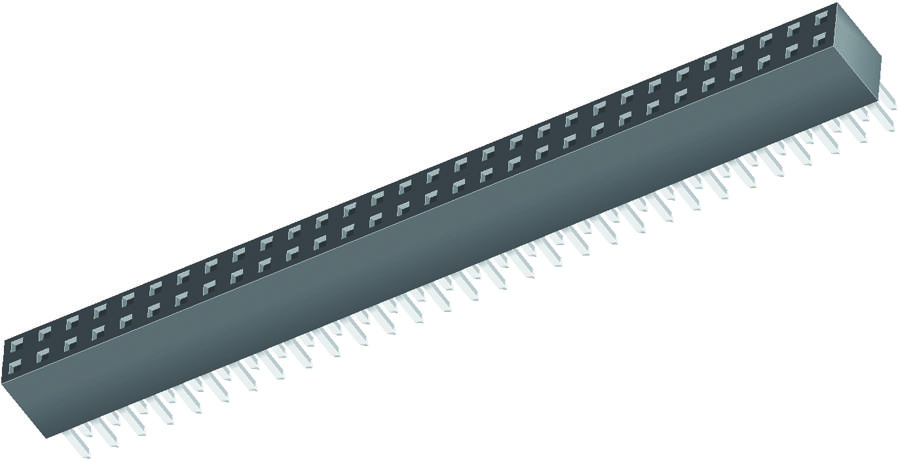

SAMTEC SSQ11001GD High-Temperature Socket
The socket features through-hole mounting, made with black liquid crystal polymer insulation for high temperature resistance. Constructed of phosphor bronze contact material with gold plating for enhanced durability, it supports an operating temperature range of -55°C to +125°C with gold plating, or -55°C to +105°C with tin plating. Designed for reliable electrical contact with contact resistance of 10 mΩ, it provides a current rating of 6.3 A per pin and maximum voltage of 550 VAC when mated with compatible connectors. Suitable for high-density electronic applications, it offers low insertion and withdrawal forces, with max cycles of 100, ensuring longevity in demanding environments.
SAMTEC SSQ11001GD High-Temperature Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, 50u" (1.27 μm)
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Current Rating: 6.3 A per pin
- Voltage Rating: 550 VAC mated with TSW
- Insertion Depth: 0.145" to 0.250" (3.68 mm to 6.35 mm)
- Insertion Force: Standard 6 oz (1.67 N), Low Insertion Force 3 oz (0.83 N)
- Withdrawal Force: Standard 5 oz (1.39 N), Low Insertion Force 2.6 oz (0.72 N)
- Max Cycles: 100
- RoHS Compliant: Yes
- Compatible Mates: TSW, MTSW, MTLW, other Samtec connectors
Buy the Buy Samtec Through-Hole Socket Part Number SSQ11001GD Online
Purchase the high-temperature through-hole socket online today for reliable performance in demanding environments. Designed with durable phosphor bronze contacts, gold or tin plating, and an extensive temperature range, this socket provides excellent electrical contact and longevity. Ideal for high-density electronic assemblies, it features low insertion and withdrawal forces, supporting up to 100 cycles. Find your perfect fit with Samtec's quality components, ensuring your projects benefit from dependable connections and lasting durability by ordering now.
Order your Samtec Series SSQ11001GD high-temperature through-hole socket today and ensure reliable, durable electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SSQ11001GD?
You can click on the BUY or RFQ button to purchase SSQ11001GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ11001GD?
You can download the SSQ11001GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ11001GD?
SAMTEC
