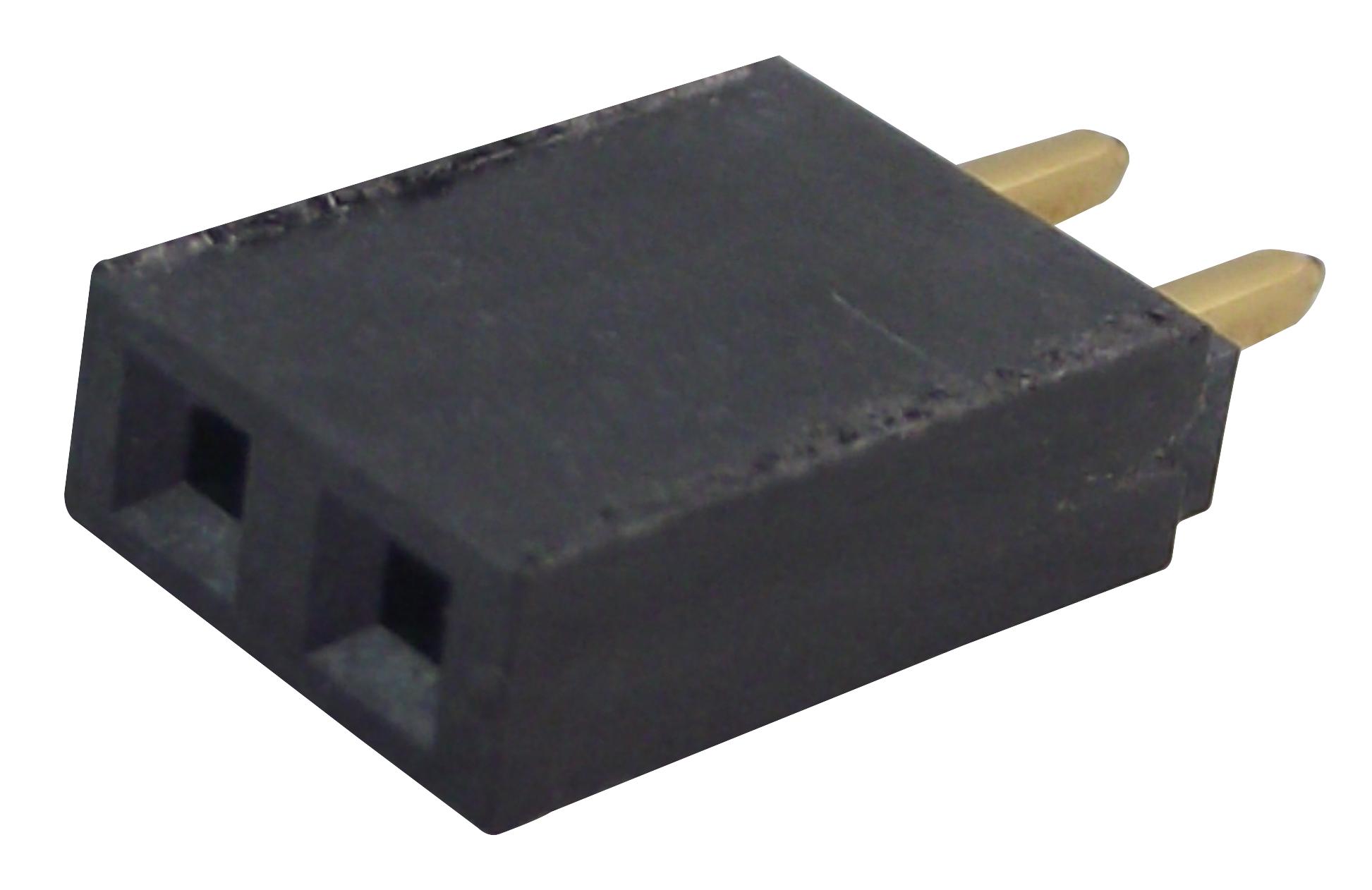

SAMTEC SSQ11401GS Square Post Socket
The through-hole square post socket features a black liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating. Designed for durability, it supports up to 100 mating cycles with a maximum voltage rating of 550 VAC. The socket accommodates a contact height of approximately 3.68 mm to 6.35 mm with insertion forces between 0.83 N and 1.39 N depending on the configuration. It operates within temperature ranges of -55°C to +125°C with gold plating, providing reliable electrical performance and RoHS compliance for industrial applications.
SAMTEC SSQ11401GS Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Snver, 50u" (1.27 μm)
- Current Rating: 5.7 A per pin
- Voltage Rating: 550 VAC
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 3.68 mm to 6.35 mm
- Insertion Force: 0.83 N to 1.39 N depending on style
- Withdrawal Force: 1.39 N to 2.9 oz (0.81 N)
- Max Cycles: 100
- RoHS Compliant: Yes
- Dimensions: Contact height approximately 3.68 mm to 6.35 mm
- Certifications: RoHS
- Approvals: See manufacturer datasheet for full standards
Buy the Samtec Series SQ Signal Connector: SSQ11401GS
Purchase the square post socket online today to enjoy reliable electrical connections suitable for industrial and automation projects. This socket features a robust liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating, supporting up to 100 mating cycles for long-term durability. Its operating temperature range between -55°C and +125°C ensures stable performance in harsh environments. RoHS compliant and rated for 550 VAC, this connector offers excellent performance, easy installation, and warranty-backed quality for your manufacturing or repair needs.
Buy Samtec SSQ11401GS now and experience unmatched reliability and high performance with durable contacts and excellent electrical performance.
Frequently Asked Questions
Where can I buy SAMTEC SSQ11401GS?
You can click on the BUY or RFQ button to purchase SSQ11401GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ11401GS?
You can download the SSQ11401GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ11401GS?
SAMTEC
