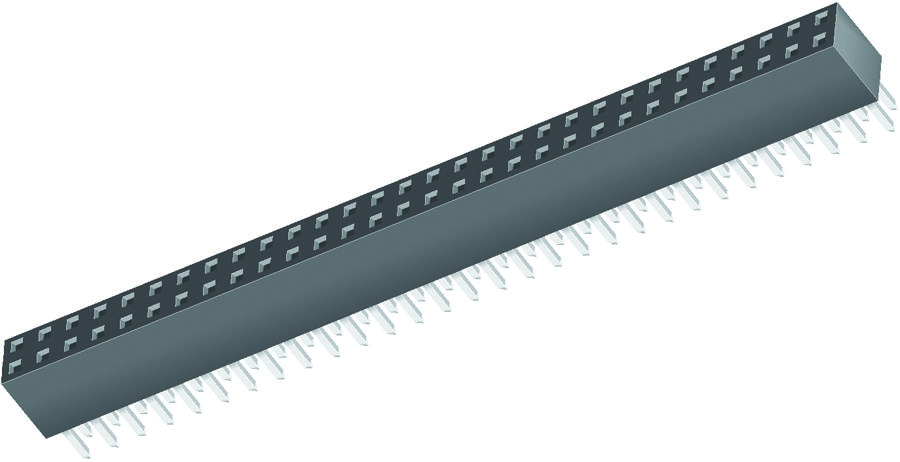

SAMTEC SSQ11501GD Square Post Socket
The through-hole square post socket SSQ-115-04-L-T features a black liquid crystal polymer insulator and phosphor bronze contact material. It is plated with gold or tin over nickel for reliable electrical connections, rated for 6.3 A per pin with a voltage rating of 550 VAC when mated. The socket supports operating temperatures from -55°C to +105°C with tin plating and up to +125°C with gold. It provides standard insertion depth of 0.145
SAMTEC SSQ11501GD Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or Black High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni, 50y" (1,27 um)
- Current Rating: 6.3 A per pin, 5.7 A per pin with specific configurations
- Voltage Rating: 550 VAC when mated
- Operating Temp Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.145" to 0.250"
- Insertion Force: Standard=6 oz (1.67 N), Low Force=3.3 oz (0.92 N)
- Withdrawal Force: Standard=5 oz (1.39 N), Low Force=26 oz (0.72 N)
- Max Cycles: 100 with 10" (0.25 um) Au
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
Buy the Samtec Series SSQ: Through-Hole Square Post Socket 11501GD
Purchase the durable and high-performance square post socket online today. With gold or tin plating for superior conductivity, it supports high current capacity and is suitable for demanding industrial environments. Easy to install with adjustable insertion depth, this socket meets RoHS standards and supports up to 100 mating cycles. Designed to operate from -55°C to +125°C, it ensures reliable electrical connections and long-term dependability. Get your high-quality socket now and enhance your electronic assemblies with confidence.
Order your Samtec Series SSQ 11501GD highly reliable through-hole square post socket today and ensure robust electrical connections for your industrial projects.
