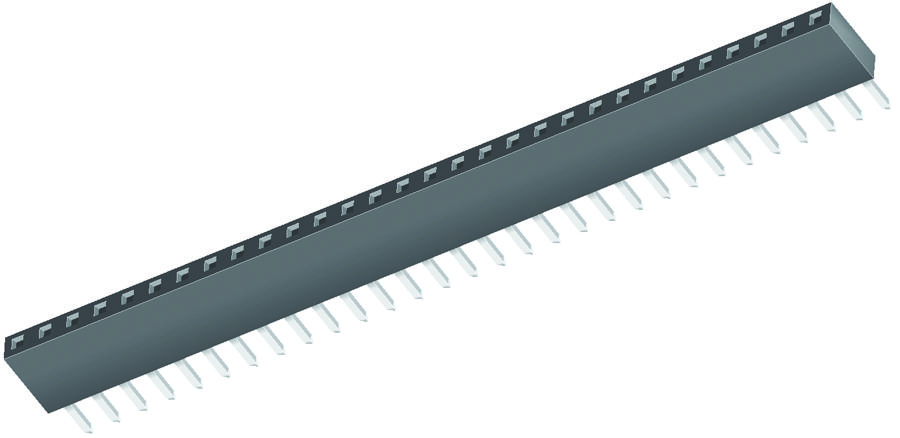

SAMTEC SSQ11501GS Industrial connector socket
This is a through-hole connector socket with 2.54 mm pitch, featuring black liquid crystal polymer insulation, phosphor bronze contacts, and gold or tin plating. Suitable for high-temperature environments with a temperature range of -55°C to +125°C with gold plating and -55°C to +105°C with tin. It has an insertion depth of 3.68 mm, standard force of 125 grams, and a voltage rating of 465 VAC / 655 VDC. RoHS compliant, with various contact and plating options, designed for reliable industrial applications and electronic component interconnections.
SAMTEC SSQ11501GS Industrial connector socket Specifications:
- Pitch: 2.54 mm
- Insulator Material: Black Liquid Crystal Polymer, or Black High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin with 50 yt" Ni
- Current Rating: 6.3 A per pin
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm
- Force: Standard 125 grams (4.4 N)
- Voltage Rating: 465 VAC / 655 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samtec SSQ11501GS – Reliable Connector Socket for Industrial Applications
Order the Samtec SSQ11501GS connector socket online today for exceptional reliability in industrial electronic connections. Featuring a 2.54 mm pitch, high-temperature insulator materials, and robust contact plating, this socket ensures optimal performance under demanding conditions. Its RoHS compliance and lead-free design make it ideal for environmentally conscious manufacturing. With a voltage rating of 465 VAC / 655 VDC and a current capacity of 6.3 A per pin, this connector offers a secure, durable, and versatile solution for electronic assembly and automation applications. Experience quality, precision, and durability—buy now to enhance your projects.
Get Samtec SSQ11501GS today—built for precision, high-temperature operation, and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC SSQ11501GS?
You can click on the BUY or RFQ button to purchase SSQ11501GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ11501GS?
You can download the SSQ11501GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ11501GS?
SAMTEC
