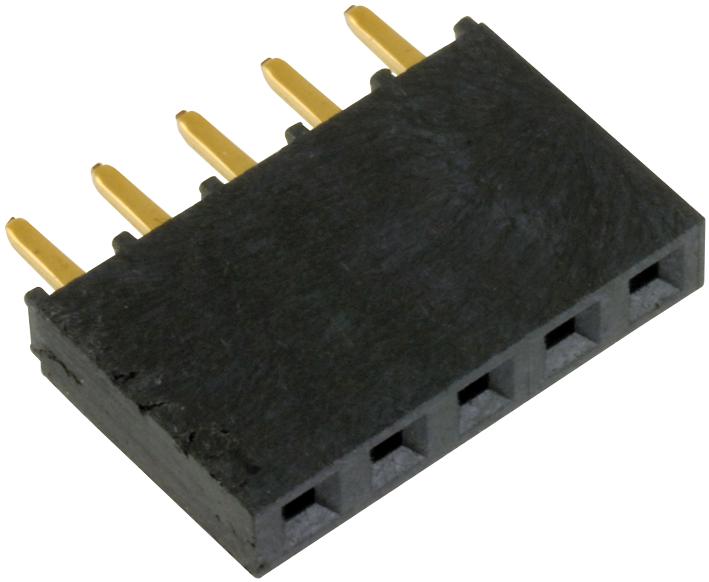

SAMTEC SSQ11502GS002 Through-Hole Socket
The through-hole .025-inch square post socket features a black liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating. Suitable for high-temperature applications, it supports current ratings up to 6.3 A per pin and voltage ratings of 465 VAC / 655 VDC. The socket is RoHS compliant, includes various plating options, and is designed for easy insertion with standard or low-force options. Compatible with multiple mates, it is ideal for power and signal connections in electronic assemblies, with models available in different lead styles, rows, and lengths for versatile applications.
SAMTEC SSQ11502GS002 Through-Hole Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature Range: -55 °C to +125 °C with Gold, -55 °C to +105 °C with Tin
- Insertion Depth: 3.68 mm or 6.35 mm
- Normal Force: 125 grams (4.4 N)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatibility: TSW, MTSW, MTLW, E, ZW, TSS, ZSS, TSM, TSSH, HTSS
- Various plating options: Gold on contact, Gold flash, Tin on tail
- Dimensions: Standard sizes with options for straight or right-angle pin versions
Buy the Samtec Series High-Current Through-Hole Socket: SSQ11502GS002
Purchase the Samtec SSW-125-01-G-S through-hole socket online today and benefit from high-quality power and signal connectivity solutions. Featuring phosphor bronze contacts with gold or tin plating, this socket supports up to 6.3 A per pin and 465 VAC / 655 VDC voltage ratings, making it suitable for demanding electronic applications. Its high-temperature insulator material ensures durability in challenging environments. RoHS compliant and available with various plating and lead styles, this socket guarantees reliable and efficient connections for your electronic assemblies, streamlining your workflow.
Order your Samtec SSW-125-01-G-S high-current through-hole socket today and ensure reliable, durable connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SSQ11502GS002?
You can click on the BUY or RFQ button to purchase SSQ11502GS002 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ11502GS002?
You can download the SSQ11502GS002 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ11502GS002?
SAMTEC
