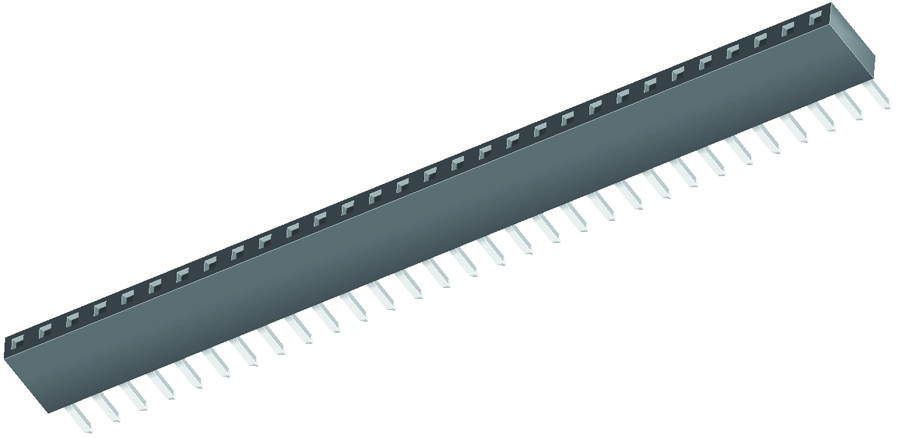

SAMTEC SSQ11601GS Electrical Connector
The SSQ series offers high-performance connectors featuring black liquid crystal polymer or high-temperature thermoplastic insulators, phosphor bronze contacts, and gold or tin plating. Designed for reliable electrical connections, these connectors operate within a temperature range of -55°C to +125°C with gold plating. They support current ratings up to 6.3 A per pin, with standard insertion forces of 6 oz and low-force options for easier installation. Suitable for various applications requiring durability, precision, and RoHS compliance, these connectors are compatible with multiple mating interfaces and provide reliable long-term performance.
SAMTEC SSQ11601GS Electrical Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50y" Ni
- Current Rating: 6.3 A per pin
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 3.68 mm to 6.35 mm
- Insertion Force: Standard 6 oz (1.67 N), Low Insertion Force options available
- Withdrawal Force: Standard 5 oz (1.39 N), Low Force variants
- Maximum Cycles: 100
- Voltage Rating: 550 VAC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatible with TSW, MTSW, MTLW, EW, ZW, TSS, ZSS, TSM, TSSH, HTSS
Buy the Samtec Series SSQ Connectors: SSQ11601GS
Purchase the Samtec SSQ11601GS online to ensure reliable electrical connections for your projects. These connectors feature robust phosphor bronze contacts, high-quality insulators, and gold or tin plating for optimal conductivity and corrosion resistance. Designed to operate in extreme temperatures from -55°C to +125°C, they support high current ratings and provide low insertion and withdrawal forces for easy assembly. With up to 100 mating cycles, RoHS compliance, and lead-free solderability, these connectors are ideal for demanding industrial, electronics, and automation applications. Buy now for dependable performance.
Get Samtec SSQ11601GS today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC SSQ11601GS?
You can click on the BUY or RFQ button to purchase SSQ11601GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ11601GS?
You can download the SSQ11601GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ11601GS?
SAMTEC
