SAMTEC SSQ11801GS Square Post Socket
This high-quality through-hole square post socket features a 0.025-inch square pin and robust construction, suitable for reliable connectivity in electronic assemblies. Crafted from phosphor bronze with gold or tin plating, it supports a current of 5.7A per pin and withstands temperatures from -55°C to +125°C. The socket offers an insertion depth of approximately 0.145 inches to 0.250 inches and has a maximum cycle rating of 100 insertions. Its RoHS compliance and compatibility with various mating connectors make it ideal for precise, durable electrical connections in complex systems.
SAMTEC SSQ11801GS Square Post Socket Specifications:
- Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Plating: Gold or Tin, 50μ" (1.27μm)
- Current Rating: 5.7A per pin, 6.3A per row
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10mΩ
- Insertion Depth: 0.145" to 0.250" (3.68 mm to 6.35 mm)
- Insertion Force: Standard 6 oz (1.67 N), Low Insertion Force 3 oz (0.83 N)
- Withdrawal Force: Standard 5 oz (1.39 N), Low Insertion Force 2.6 oz (0.72 N)
- Max Cycles: 100
- Voltage Rating: 550 VAC with TSW
- RoHS Compliant: Yes
- Dimensions: Pin size 0.025" square, length varies, typical ins. thickness 0.030"
- Compatible with: TSW, MTSW, and other Samtec connectors

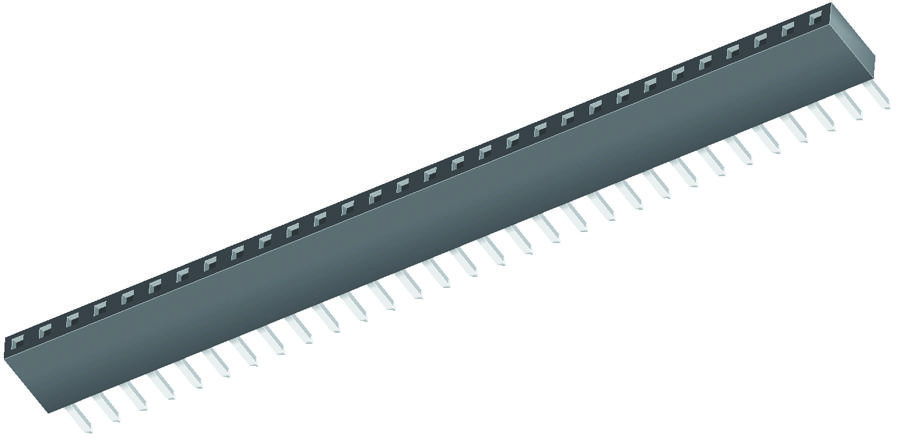

Buy the Buy Samtec Through-Hole Square Post Socket Part Number SSQ11801GS Online
Elevate your electronic assembly with the Samtec Square Post Socket, featuring 0.025-inch square pins, durable phosphor bronze construction, and gold or tin plating. Designed to support 5.7A per pin and operate across a wide temperature range from -55°C to +125°C, it offers reliable connectivity for demanding applications. Its insertion depth of 0.145 to 0.250 inches and max cycle count of 100 ensure long-term use. RoHS compliant and compatible with various connectors, making it ideal for complex, high-performance systems.
Order your Samtec SSQ11801GS high-reliability square post socket today and ensure dependable electrical connections in your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SSQ11801GS?
You can click on the BUY or RFQ button to purchase SSQ11801GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ11801GS?
You can download the SSQ11801GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ11801GS?
SAMTEC
