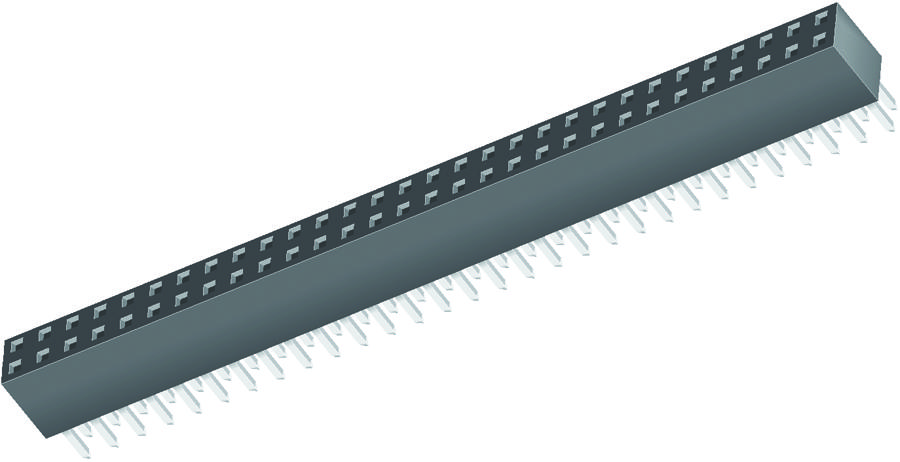

SAMTEC SSQ12001GD through-hole socket strip
The SSQ-120-01-G-D is a 20-pole, two-row through-hole socket strip with a 2.54mm pitch, featuring gold-plated phosphor bronze contacts and a high-performance liquid crystal polymer insulator. Designed for reliable connections, it offers standard and low insertion force options with 0.025-inch square tails. Rated for 6.3A current, with a contact resistance of 10 milliohms, it supports temperatures from -55°C to +125°C. Compatible with various connector series, this black socket is lead-free and suitable for industrial electronics, automation, and circuit board applications.
SAMTEC SSQ12001GD through-hole socket strip Specifications:
- Number of Poles: 20
- Row Configuration: Two-row
- Pitch: 2.54 mm
- Contact Material: Phosphor Bronze
- Plating: Gold
- Insulator Material: Liquid Crystal Polymer
- Current Rating: 6.3 A per pin
- Contact Resistance: 10 milliohms
- Temperature Range: -55°C to +125°C
- Rated Voltage: 550 VAC with TSW
- Solderability: Lead-free, RoHS compliant
- Insertion Force: Standard = 6 oz (1.67 N); Low force options available
- Withdrawal Force: Standard = 5 oz (1.39 N)
- Compatible Series: DW, EW, HCMD, HCMS, HHSC, HMTSW, HTSS, HTSW, HW-SM, HW-TH, LCW, MTLW, MTSW, PHT, TLW, TSM, TSS, TSSH, TSW, ZSS, ZW
- Physical Dimensions: Tails 0.025 inch square, length varies as per model
Buy the Samlec Series SSQ 120-01-G-D: 20-Pole Through-Hole Socket Strip
Order the Samlec SSQ12001GD online today to ensure reliable electrical connections with high-quality gold-plated contacts and high-performance insulators. This 20-pole, two-row through-hole socket strip features a 2.54mm pitch, rated for 6.3A current, with a contact resistance of only 10 milliohms. Designed for industrial electronics, automation, and demanding applications, it offers both standard and low insertion force options with lead-free and RoHS compliance. Easy to solder and compatible with multiple connector series, ensuring flexible use in circuit board assembly.
Buy Samlec SSQ12001GD now and experience unmatched reliability and performance with durable, high-temperature circuit connectors for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC SSQ12001GD?
You can click on the BUY or RFQ button to purchase SSQ12001GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ12001GD?
You can download the SSQ12001GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ12001GD?
SAMTEC
