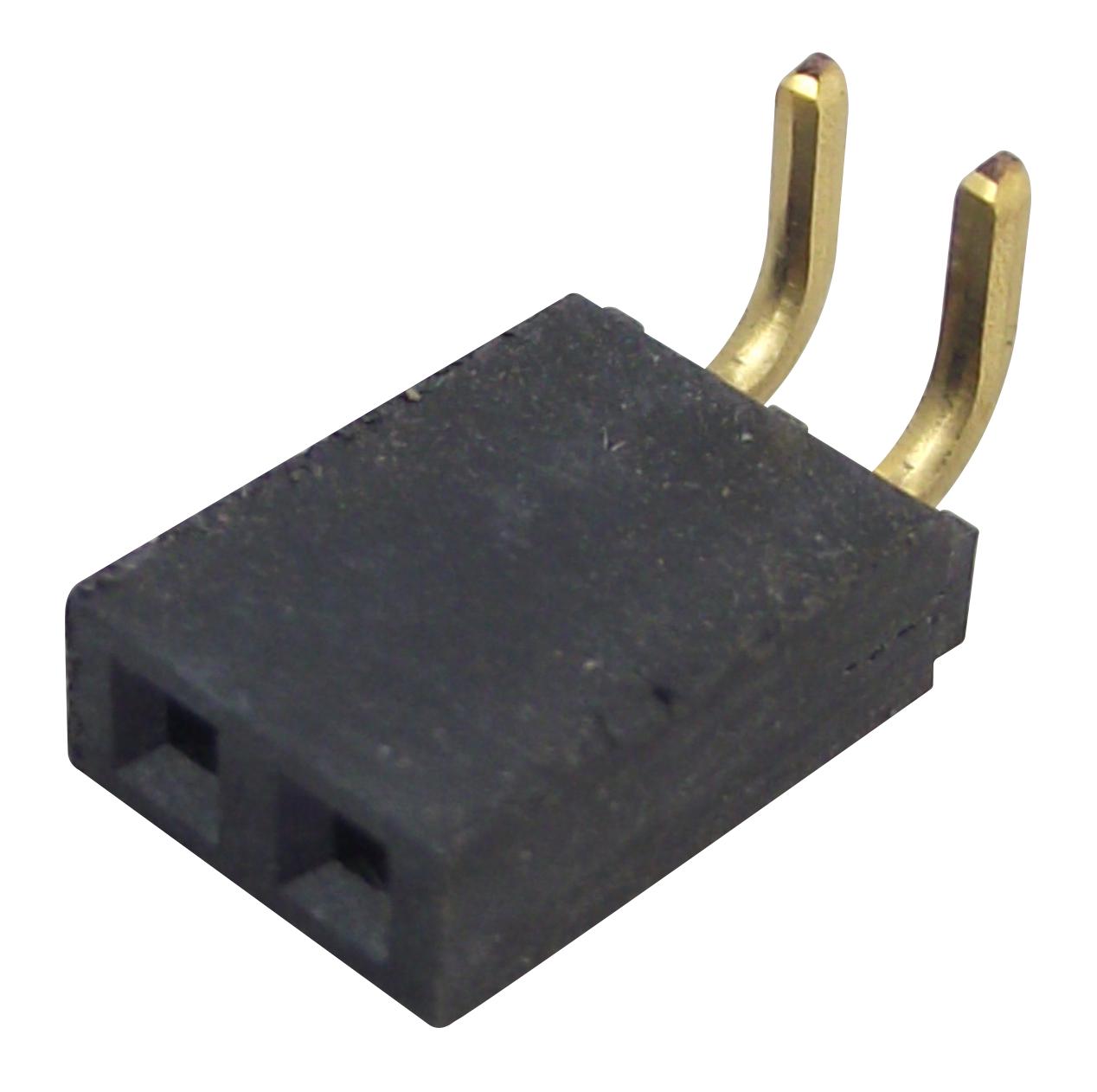

SAMTEC SSQ12402SSRA Square Post Socket
The product is a through-hole square post socket with a 2.54 mm (.100 inch) pitch designed for reliable electrical connections in high-temperature environments. Made with black liquid crystal polymer insulator material and phosphor bronze contacts, it features gold or tin plating options, with current ratings of 6.3 A per pin and a voltage rating of 465 VAC / 655 VDC. It operates within a temperature range of -55°C to +125°C with gold plating and -55°C to +105°C with tin. The socket supports various lead styles, insertion depths, and spacing configurations, suitable for high-density electronic assemblies in RoHS-compliant applications.
SAMTEC SSQ12402SSRA Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or Black High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin with Ni underlayer
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Insertion Depth: 3.68 mm to 6.35 mm
- Standard Force: 125 grams (4.4 N)
- RoHS Compliant: Yes
- Supported Rows: -S, -D, -P, -Q options
- Suitable for high-density PCB connections, various lead styles, RoHS compliance, and reliable power and signal transfer in industrial electronics
Buy the Buy Samtec SSW-125-01-G-S Part Number SSQ12402SSRA Online
Purchase the Samtec Square Post Socket SSQ12402SSRA online today and enjoy reliable, high-quality connections for your electronic assemblies. Designed with robust materials, high-temperature tolerance, and flexible configurations, this socket ensures safety and durability in demanding applications. Featuring gold or tin plating options, it supports various lead styles and insertion depths, making it suitable for industrial, signal, and power connections. Order now and enhance your assemblies with trusted Samtec quality, quick shipping, and excellent customer support.
Order your Samtec SeriesSSW-125-01-G-S SSQ12402SSRA today and ensure dependable high-temperature electrical connections for your projects.
Frequently Asked Questions
Where can I buy SAMTEC SSQ12402SSRA?
You can click on the BUY or RFQ button to purchase SSQ12402SSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ12402SSRA?
You can download the SSQ12402SSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ12402SSRA?
SAMTEC
